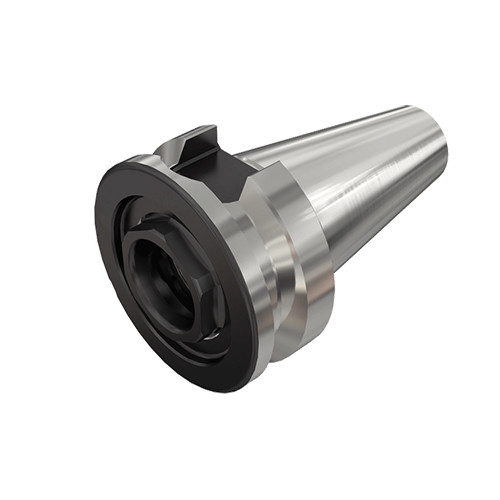

BT50ER40SHORT
Collet Chuck ; BT50 Shank Size ; ER40 Connection Size ; 1.969″ Body Dia. ; 0.374″ Body Length ; 0.118″ Min. Capacity ; 1.024″ Max. Capacity

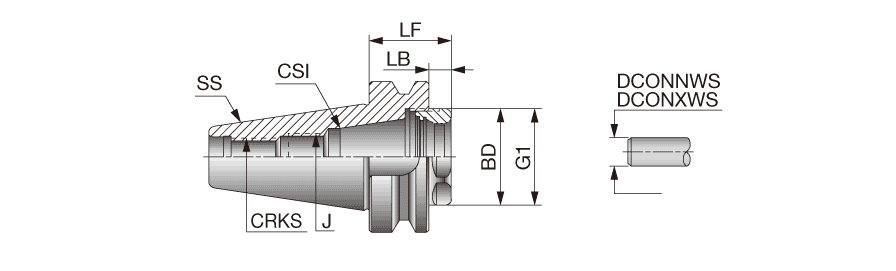

| Shank Size (SS) | BT50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER40 | Tool Type | BT |
| Body Diameter (BD) | 1.969″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Body Length (LB) | 0.374″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Shank Length (LS) | 4.008″ | Measurement Type | Inch |
| Functional Length (LF) | 1.87″ | Body Material | Steel |

Product Features
| Family Description | TungShort collet chucks with BT shank | Country of Origin | ITALY |
| Remarks | Add B for coolant through the flange. Wrench is not included. |
Shipping Info
Package Weight
7.319
