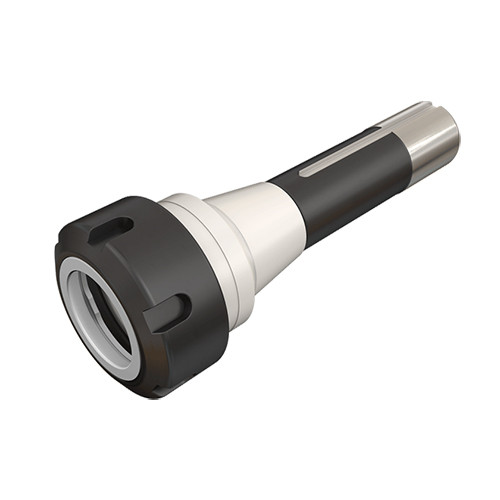

R-8ER40X72
Collet Chuck ; R-8 Shank Size ; ER40 Connection Size ; 2.48″ Body Dia. ; 0.118″ Min. Capacity ; 1.024″ Max. Capacity

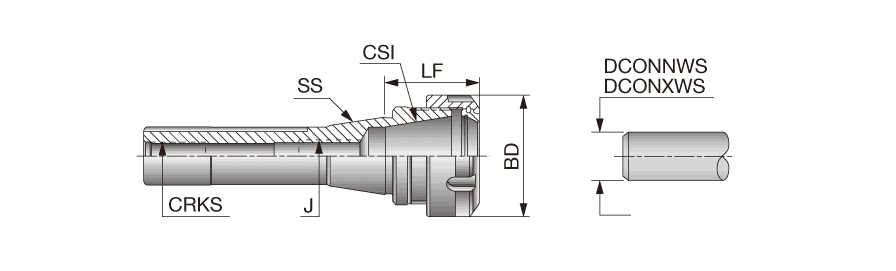

| Shank Size (SS) | R-8 | Tool Type | R-8 |
| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Body Diameter (BD) | 2.48″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Functional Length (LF) | 2.835″ | Measurement Type | Inch |
| Application | | Straight shape | | Body Material | Steel |
Product Features
| Family Description | ER collet chucks with R-8 Bridgeport shank | Country of Origin | ITALY |
Shipping Info
Package Weight
2.646
