TJSHPCER32

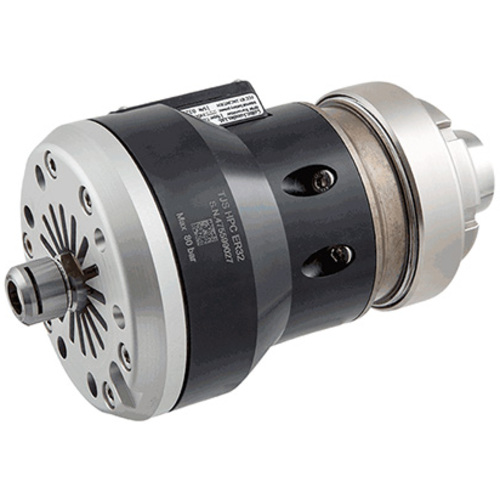

Collet Chuck ; ER11 Connection Size ; 3.15″ Body Dia. ; 0.276″ Max. Capacity

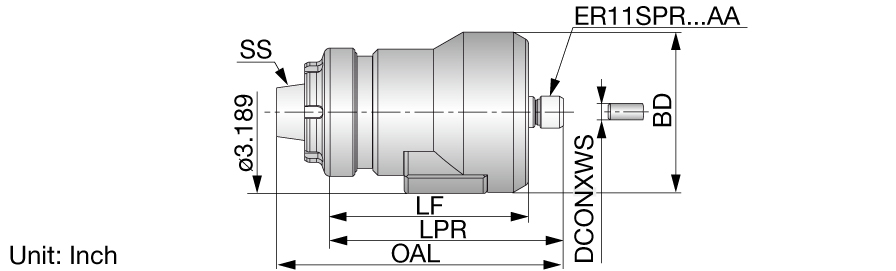

| Connection Size (CSI) | ER11 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.276″ |
| Body Diameter (BD) | 3.15″ | Measurement Type | Inch |
| Functional Length (LF) | 3.898″ | Body Material | Steel |
| Application | | Tapered shape interface | |
Product Features
| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | Country of Origin | Israel |
| Remarks | Coolant pressure through machine spindle: Min. 1.5 MPa / Max. 7 MPa Min. flow rate: 10 l/min Max. tool shank diameter: 7.0 mm RPM range: 21,000 45,000 RPM (These are approximate RPM values depending on coolant pressure, flow rate, and type.) |
Shipping Info
Package Weight
0
Related Documentation
