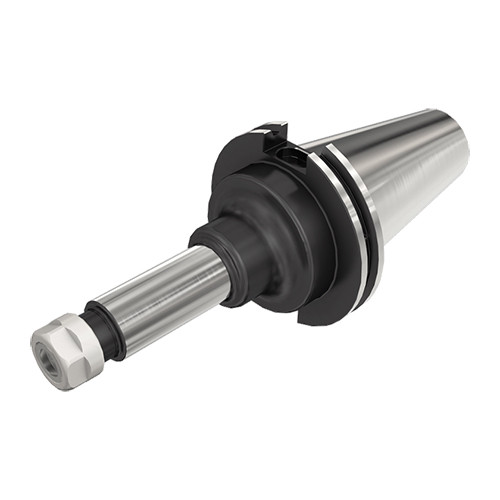

BT30FCER25X60
Collet Chuck ; BT30-FC Shank Size ; ER25 Connection Size ; 1.654″ Body Dia. ; 1.496″ Body Length ; 0.039″ Min. Capacity ; 0.63″ Max. Capacity

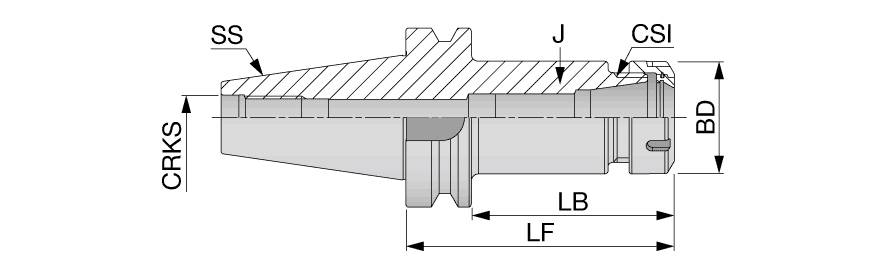

| Shank Size (SS) | BT30-FC | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER25 | Tool Type | BT |
| Body Diameter (BD) | 1.654″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Length (LB) | 1.496″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.63″ |
| Shank Length (LS) | 1.906″ | Measurement Type | Inch |
| Functional Length (LF) | 2.362″ | Body Material | Steel |
Product Features
| Family Description | ER collet chuck holder with BT MAS-403 face contact AD tapered shank. | Country of Origin | ITALY |
Shipping Info
Package Weight
0.000
