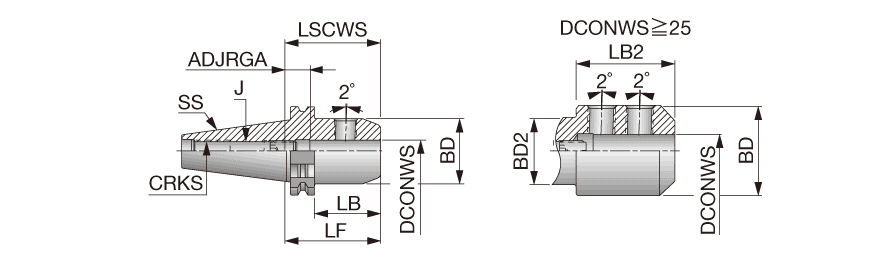

DIN6987140EM32X100E
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Diameter (BD) | 72 mm | Shank Size (SS) | 40. |
| Body Diameter_2 (BD_2) | 49 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 2.4 kg | Body Length (LB) | 80.9 mm |
| Overall Length (OAL) | 100 mm | Body Length_2 (LB_2) | 65 mm |
| Application | | Tapered shape interface | | Body Material | Steel |
| Measurement Type | Metric |
Product Features

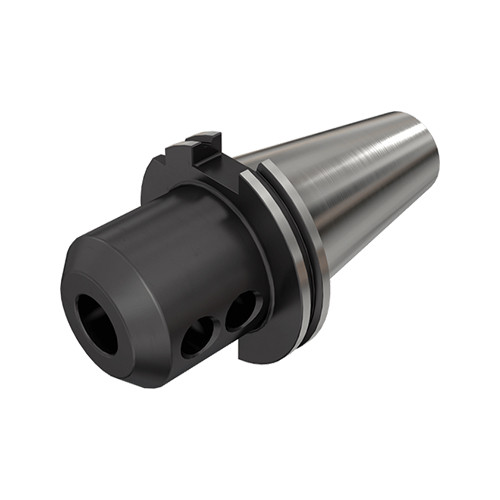

| Family Description | Screw locking endmill holders for whistle notch with DIN69871 shank | Country of Origin | Italy |
| Remarks | Add B for coolant through the flange. |
Shipping Info
Package Weight
0.009
