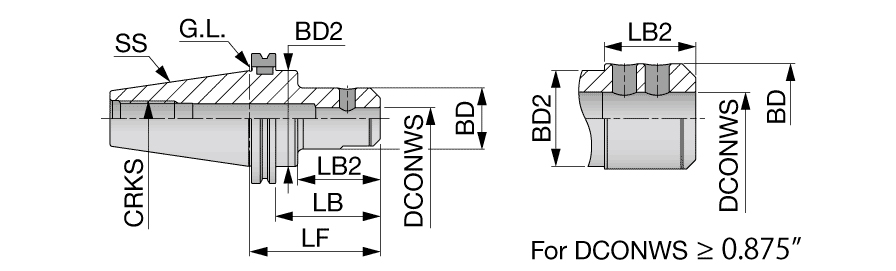

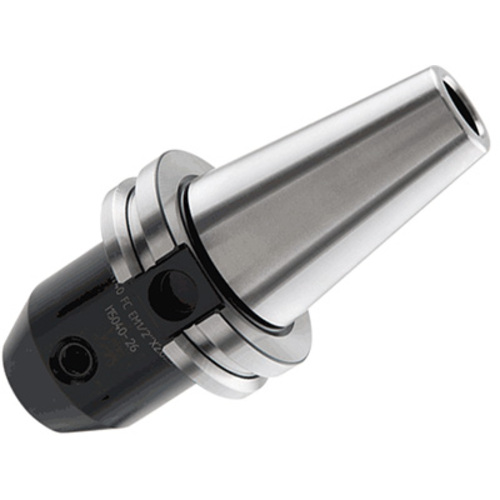

CAT40FCEM1/2X2.625
| Shank Type | Weldon | Connection Retention Knob Thread Size (CRKS) | 5/8-11 |
| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Shank Size (SS) | 40. |
| Body Diameter (BD) | 1.38″ | Tool Type | Caterpillar |
| Body Diameter_2 (BD_2) | 1.752″ | Body Length (LB) | 1-7/8″ |
| Overall Length (OAL) | 2-5/8″ | Body Length_2 (LB_2) | 1.245″ |
| Application | | Tapered shape interface | | Body Material | Steel |
| Measurement Type | Inch |
Product Features
| Family Description | DIN1835 Form B endmill holder with Caterpillar face contact AD tapered shank. | Country of Origin | ITALY |
| Remarks | Applicable for 7 MPa coolant. |
