CAT40EM5/8X1.750

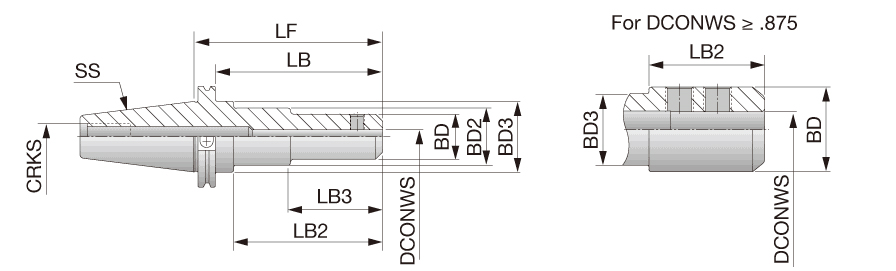

| Shank Type | Weldon | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 5/8″ | Connection Retention Knob Thread Size (CRKS) | 5/8-11 |
| Body Diameter (BD) | 1-1/2″ | Shank Size (SS) | 40. |
| Body Diameter_2 (BD_2) | 1.752″ | Tool Type | Caterpillar |
| Protruding Length (LPR) | 1.98 lbs | Body Length (LB) | 1″ |
| Overall Length (OAL) | 1-3/4″ | Body Material | Steel |
| Application | | Tapered shape interface | |
Product Features

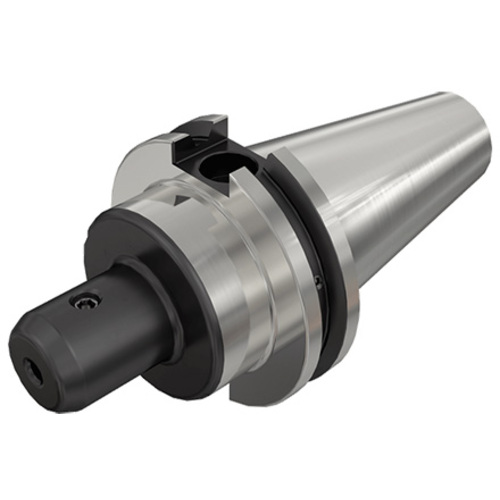

| Family Description | Weldon endmill holder with Caterpillar form ADB tapered shank. | Country of Origin | India |
Shipping Info
Package Weight
0.009
