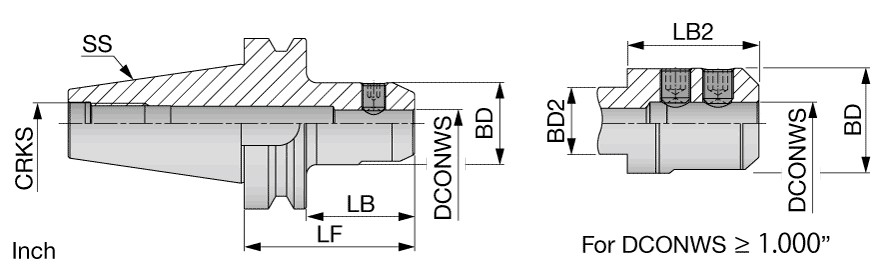

BT30FCEM1X4.000
| Shank Type | Weldon | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Connection Retention Knob Thread Size (CRKS) | M12 |
| Body Diameter (BD) | 2.56″ | Shank Size (SS) | 30. |
| Body Diameter_2 (BD_2) | 1.784″ | Tool Type | BT |
| Protruding Length (LPR) | 2.09 lbs | Body Length (LB) | 3.134″ |
| Overall Length (OAL) | 4″ | Body Length_2 (LB_2) | 2.74″ |
| Application | | Tapered shape interface | | Body Material | Steel |
Product Features
| Family Description | DIN1835 Form B endmill holder with BT MAS-403 face contact AD tapered shank. | Country of Origin | ITALY |
| Remarks | Applicable for 10 MPa coolant |
