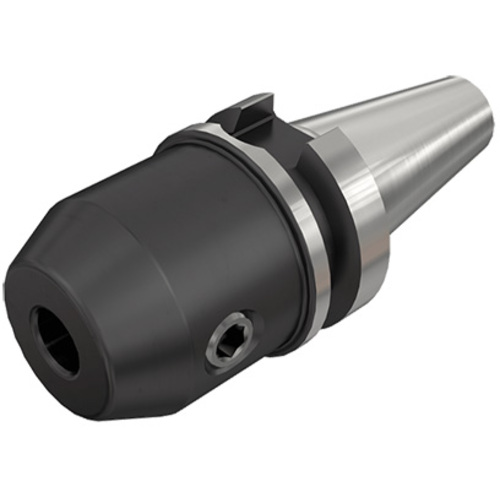

BT30FCEM20X80

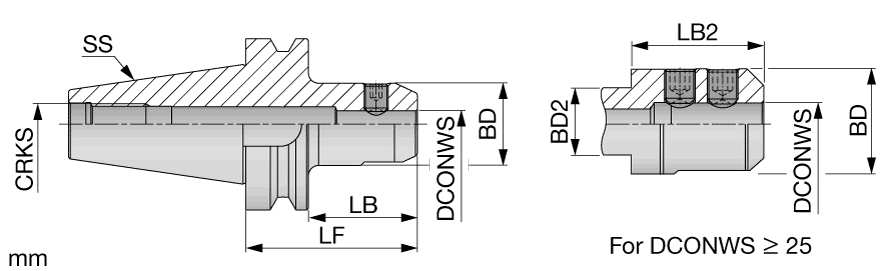

| Shank Type | Weldon | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Connection Retention Knob Thread Size (CRKS) | M12 |
| Body Diameter (BD) | 52 mm | Shank Size (SS) | 30. |
| Body Diameter_2 (BD_2) | 44.4 mm | Tool Type | BT |
| Protruding Length (LPR) | 1.04 kg | Body Length (LB) | 58 mm |
| Overall Length (OAL) | 80 mm | Body Length_2 (LB_2) | 48 mm |
| Application | | Tapered shape interface | | Body Material | Steel |
Product Features
| Family Description | DIN1835 Form B endmill holder with BT MAS-403 face contact AD tapered shank. | Country of Origin | ITALY |
| Remarks | Applicable for 10 MPa coolant |
