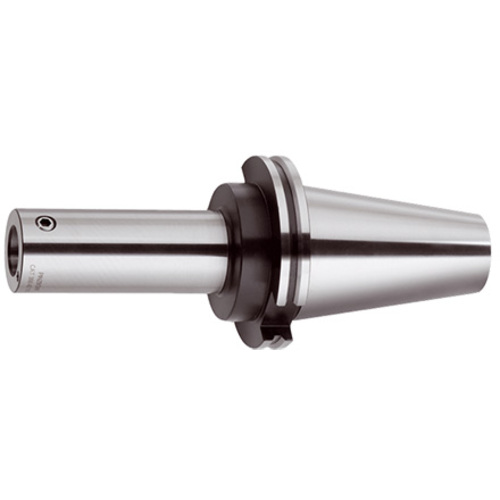

CT-340-68-160-W
Shrink Fit Holder ; 1.417″ Hole Dia. ; 3.82″ OAL ; 2.677″ Body Dia.

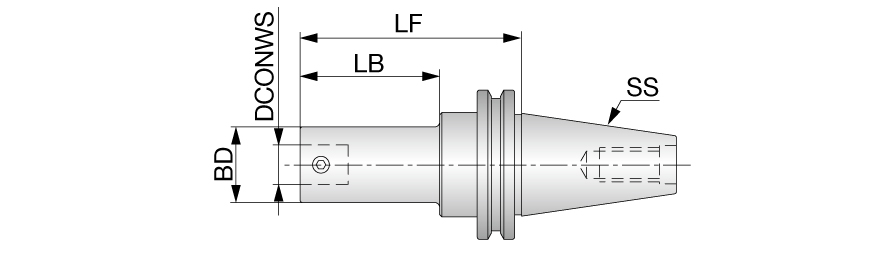

| Connection Diameter Workpiece Side (DCONWS) | 1.417″ | Overall Length (OAL) | 3.82″ |
| Shank Size (SS) | 40. | Application | | PINZBOHR tools | |
| Body Length (LB) | 3.07″ | Clamping Length Workpiece Side (LSCWS) | 3.82″ |
| Body Diameter (BD) | 2.677″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 6.507″ | Body Material | Steel |
Product Features
| Family Description | Arbor with CAT taper | Country of Origin | Spain |
| Remarks | PINZBOHR Boring System is a product of MYFHE,S.A. These products are for the North American Region only. These holders are NON Coolant thru. Coolant thru holders can be provided upon request. |
Shipping Info
Package Weight
0
