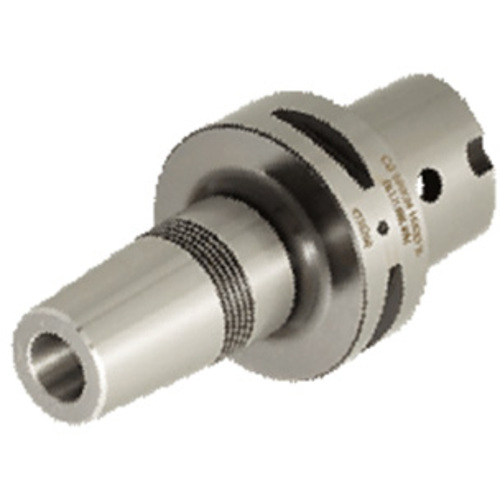

C5SRKIN8X75
Shrink Fit Holder ; 8 mm Hole Dia. ; 50 mm Shank Dia. ; 75 mm OAL ; 21 mm Body Dia. ; Round Shank

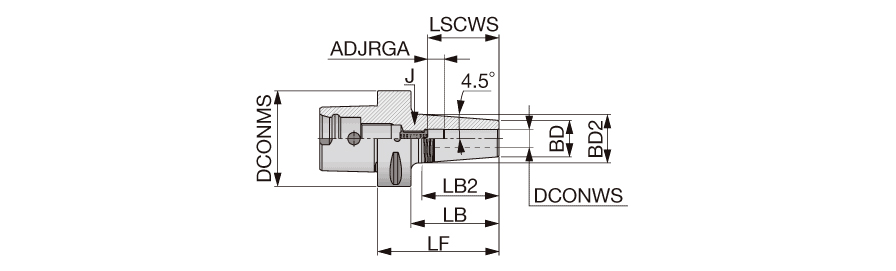

| Connection Diameter Machine Side (DCONMS) | 50 mm | Overall Length (OAL) | 75 mm |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Shank Type | Round |
| Shank Size (SS) | 50. | Application | | Face contact interface | |
| Body Length (LB) | 55 mm | Thread Designation Inside (THID) | M6 |
| Body Length_2 (LB_2) | 38.1 mm | Clamping Length Workpiece Side (LSCWS) | 75 mm |
| Body Diameter (BD) | 21 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 27 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Taper End Diameter (BTED) | 105 mm | Body Material | Steel |
Product Features
| Family Description | TungCap Thermal shrinking holders | Country of Origin | Israel |
| Remarks | Applicable for 7 MPa coolant |
