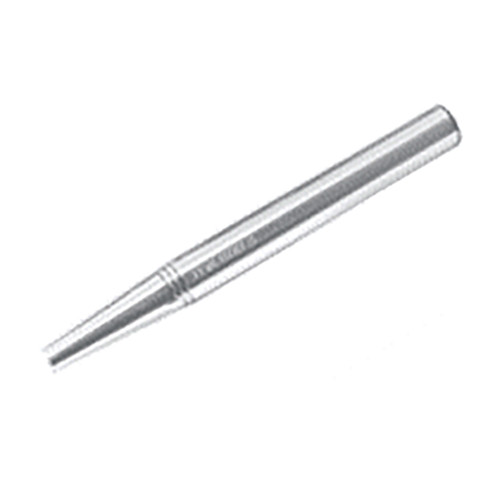

ST1 X8.000 SRK 5/16
Shrink Fit Holder ; 0.313″ Hole Dia. ; 1″ Shank Dia. ; 8″ OAL ; 0.551″ Body Dia. ; Round Shank

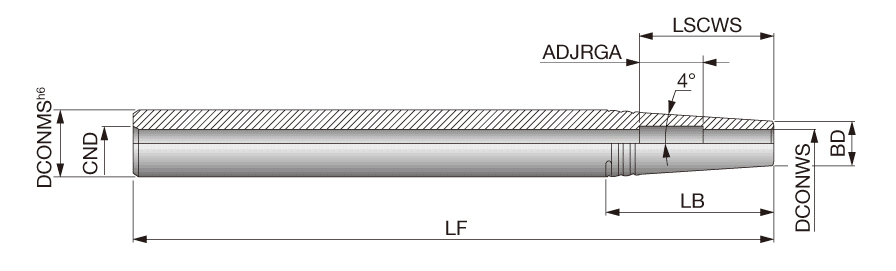

| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 0.313″ | Application | | Straight shape | |
| Body Length (LB) | 3.209″ | Clamping Length Workpiece Side (LSCWS) | 5.719″ |
| Body Diameter (BD) | 0.551″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 8″ | Tool Type | Cylindrical Shanks |
| Overall Length (OAL) | 8″ | Body Material | Steel |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with Straight shank | Country of Origin | ISRAEL |
| Remarks | Applicable for 10 MPa pressure coolant. |
Shipping Info
Package Weight
0.000
