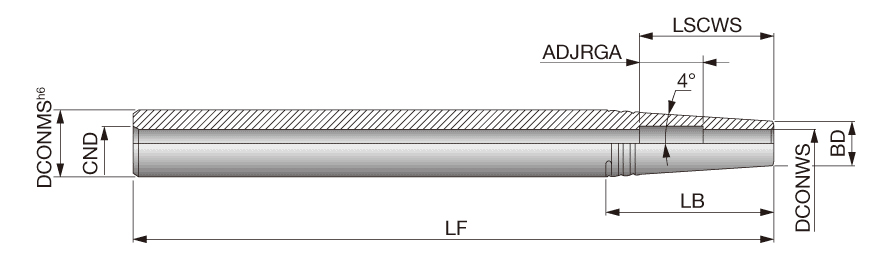

ST20X200SRK8
Shrink Fit Holder ; 8 mm Hole Dia. ; 20 mm Shank Dia. ; 200 mm OAL ; 14 mm Body Dia. ; Round Shank
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Application | | Straight shape | |
| Body Length (LB) | 43 mm | Clamping Length Workpiece Side (LSCWS) | 150 mm |
| Body Diameter (BD) | 14 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 200 mm | Tool Type | Cylindrical Shanks |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with Straight shank | Country of Origin | ISRAEL |
| Remarks | Applicable for 10 MPa pressure coolant. |
Shipping Info
Package Weight
0.952
