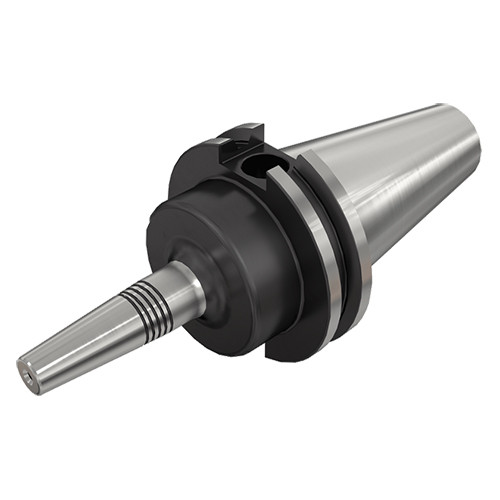

CAT40SRK1/8X2.000
Shrink Fit Holder ; 1/8″ Hole Dia. ; 3.38″ OAL ; 0.394″ Body Dia. ; Round Shank

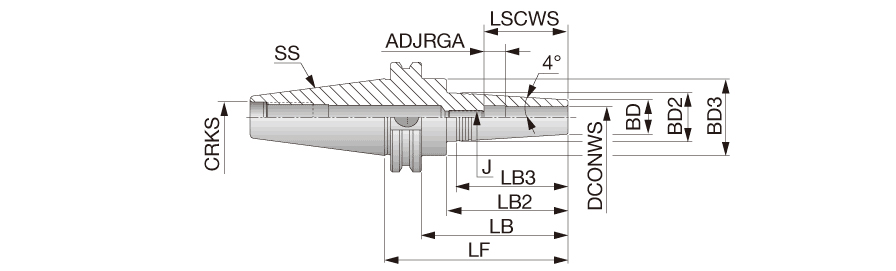

| Connection Diameter Workpiece Side (DCONWS) | 1/8″ | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 2.63″ | Thread Designation Inside (THID) | M6 |
| Body Length_2 (LB_2) | 2″ | Clamping Length Workpiece Side (LSCWS) | 3.38″ |
| Body Diameter (BD) | 0.394″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 0.591″ | Tool Type | Caterpillar |
| Body Taper End Diameter (BTED) | 6.067″ | Body Material | Steel |
| Overall Length (OAL) | 3.38″ |
Product Features
| Family Description | Thermal shrinking holder with Caterpillar tapered shank, for carbide shank only. | Country of Origin | INDIA |
Shipping Info
Package Weight
0.000
