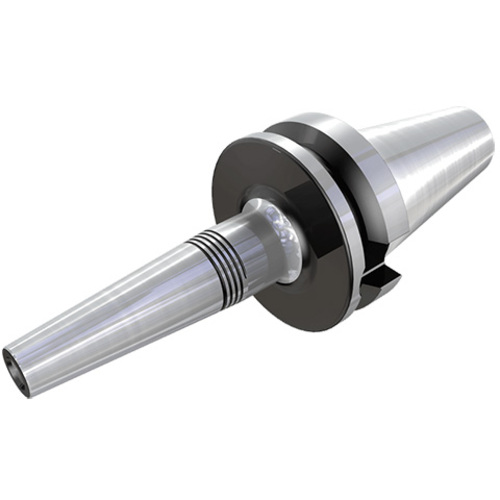

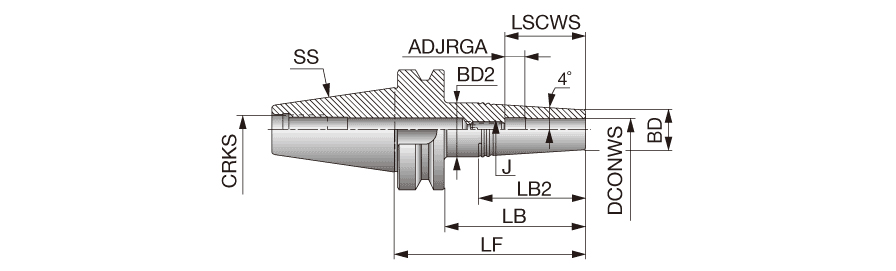

BT40SRK4X85
Shrink Fit Holder ; 4 mm Hole Dia. ; 112 mm OAL ; 10 mm Body Dia. ; Round Shank
| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 85 mm | Thread Designation Inside (THID) | M6 |
| Body Length_2 (LB_2) | 64.1 mm | Clamping Length Workpiece Side (LSCWS) | 112 mm |
| Body Diameter (BD) | 10 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 19 mm | Tool Type | BT |
| Body Taper End Diameter (BTED) | 177.4 mm | Body Material | Steel |
| Overall Length (OAL) | 112 mm |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with BT shank | Country of Origin | ISRAEL |
Shipping Info
Package Weight
2.469
