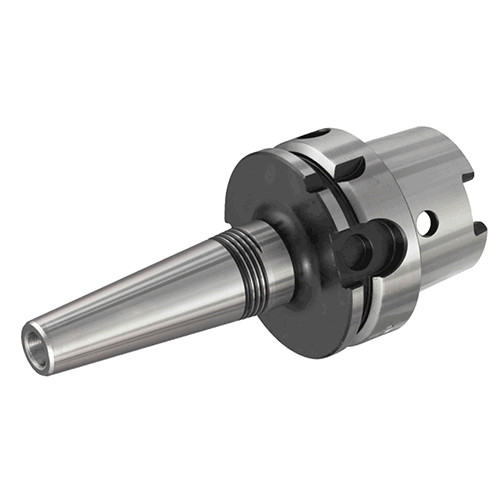

HSKA63SRK12X50
Shrink Fit Holder ; 12 mm Hole Dia. ; 63 mm Shank Dia. ; 76 mm OAL ; 20 mm Body Dia. ; Round Shank

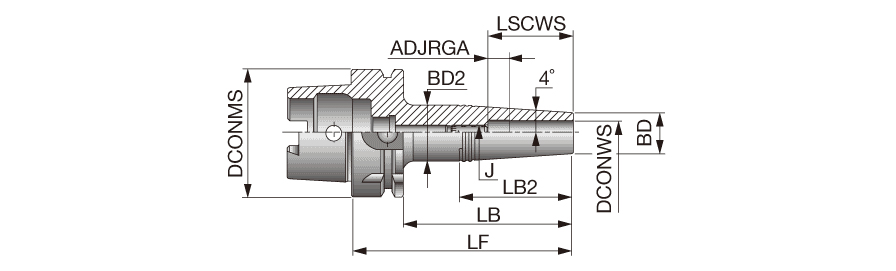

| Connection Diameter Machine Side (DCONMS) | 63 mm | Overall Length (OAL) | 76 mm |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Shank Type | Round |
| Shank Size (SS) | 63. | Application | | Face contact interface | |
| Body Length (LB) | 50 mm | Thread Designation Inside (THID) | M8 |
| Body Length_2 (LB_2) | .0 mm | Clamping Length Workpiece Side (LSCWS) | 76 mm |
| Body Diameter (BD) | 20 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 27 mm | Tool Type | HSK |
| Body Taper End Diameter (BTED) | 108 mm | Body Material | Steel |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with HSK-A shank | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
