DIN6987140SRK12X85

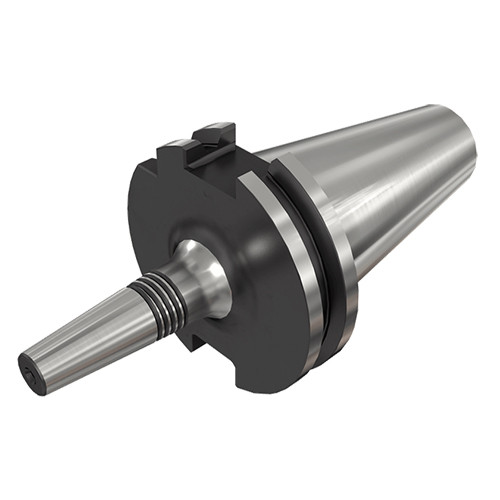

Shrink Fit Holder ; 12 mm Hole Dia. ; 104.1 mm OAL ; 20 mm Body Dia. ; Round Shank

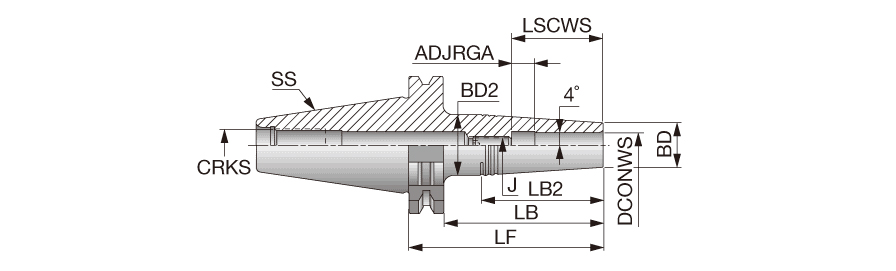

| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 85 mm | Thread Designation Inside (THID) | M10 |
| Body Length_2 (LB_2) | 56.6 mm | Clamping Length Workpiece Side (LSCWS) | 104.1 mm |
| Body Diameter (BD) | 20 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 28 mm | Tool Type | DIN 69871 |
| Body Taper End Diameter (BTED) | 172.5 mm | Body Material | Steel |
| Overall Length (OAL) | 104.1 mm |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with DIN69871 shank | Country of Origin | ISRAEL |
Shipping Info
Package Weight
2.421
