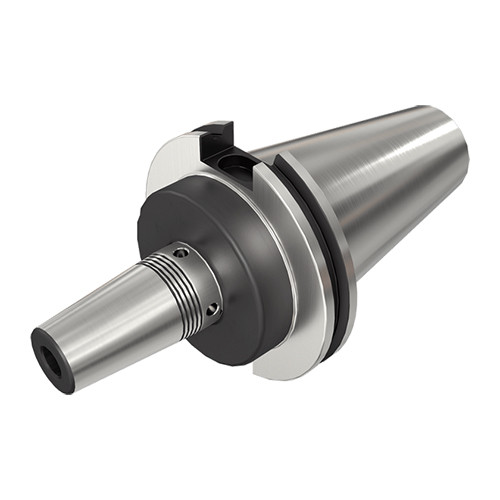

CAT50SRKIN1-1/4X4.000
Shrink Fit Holder ; 1-1/4″ Hole Dia. ; 4″ OAL ; 1.732″ Body Dia. ; Round Shank

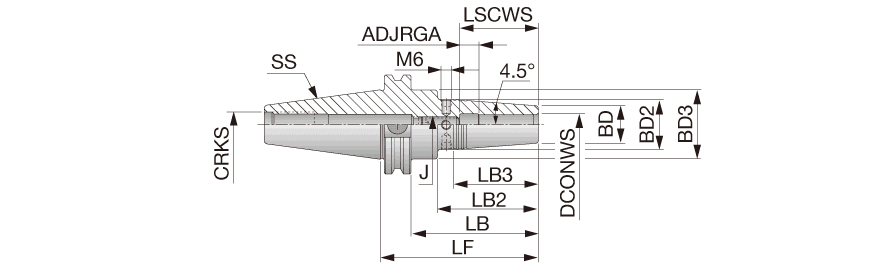

| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Shank Type | Round |
| Shank Size (SS) | 50. | Application | | Tapered shape interface | |
| Body Length (LB) | 3-1/4″ | Thread Designation Inside (THID) | M16 |
| Body Length_2 (LB_2) | 2.62″ | Clamping Length Workpiece Side (LSCWS) | 4″ |
| Body Diameter (BD) | 1.732″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 2.087″ | Tool Type | Caterpillar |
| Body Taper End Diameter (BTED) | 8″ | Body Material | Steel |
| Overall Length (OAL) | 4″ |
Product Features
| Family Description | Thermal shrinking holder with integral Caterpillar tapered shank, for carbide, HSS and steel shank with h6 tolerance. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
