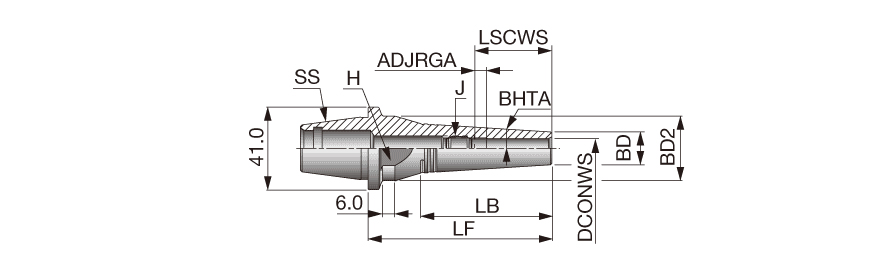

ER32SRF3X50
Shrink Fit Holder ; 3 mm Hole Dia. ; 50 mm OAL ; 10 mm Body Dia.
| Connection Diameter Workpiece Side (DCONWS) | 3 mm | Application | | Accessories | |
| Body Length (LB) | 31 mm | Thread Designation Inside (THID) | M6 |
| Body Length_2 (LB_2) | 31.0 mm | Clamping Length Workpiece Side (LSCWS) | 50 mm |
| Body Diameter (BD) | 10 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 32 mm | Tool Type | Interchangeable Milling Connectors |
| Overall Length (OAL) | 50 mm | Body Material | Steel |
Product Features
| Family Description | TungShrink quick change collet type | Country of Origin | ISRAEL |
| Remarks | For JET2 collet, add JET2 to the designations (i.e. ER32 SRF 10/50 JET2). Tightening torque: 235 Nm |
