CDPM10SRK4X40

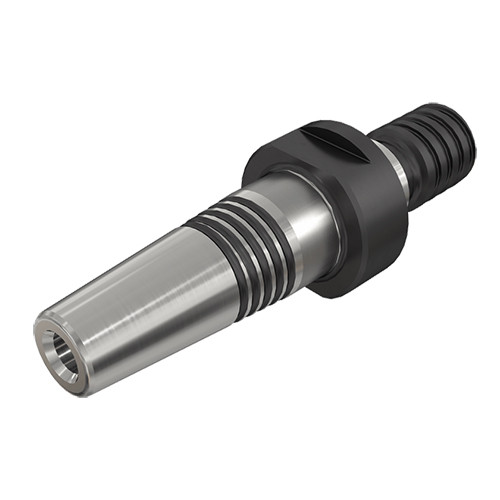

Shrink Fit Holder ; 4 mm Hole Dia. ; 40 mm OAL ; 10 mm Body Dia. ; Round Shank

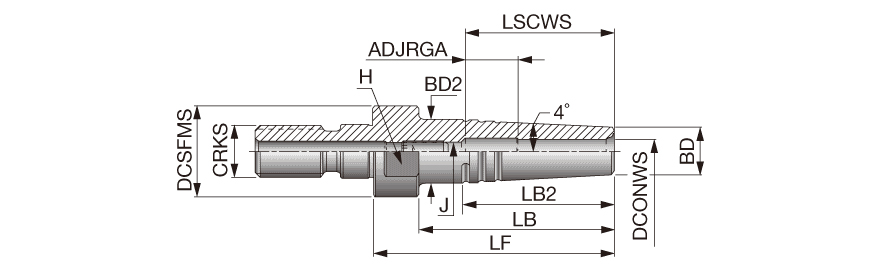

| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Application | | Straight shape | |
| Body Length (LB) | 31.5 mm | Thread Designation Inside (THID) | M4 |
| Body Length_2 (LB_2) | 29.1 mm | Clamping Length Workpiece Side (LSCWS) | 40 mm |
| Body Diameter (BD) | 10 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 14 mm | Tool Type | Interchangeable Milling Connectors |
| Overall Length (OAL) | 40 mm | Body Material | Steel |
| Shank Type | Round |
Product Features
| Family Description | TungFlex adapter with shrinking holder for carbide shank | Country of Origin | ISRAEL |
