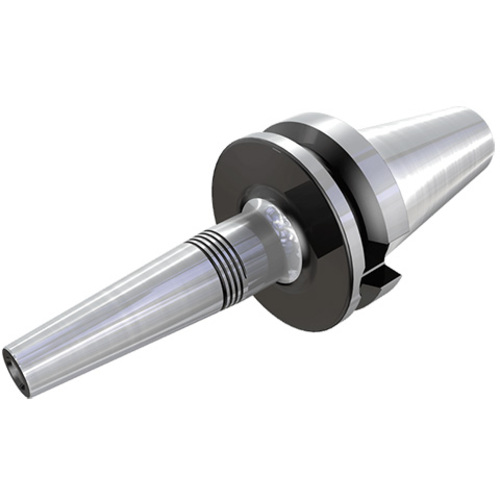

BT30FCSRK4X50
Shrink Fit Holder ; 4 mm Hole Dia. ; 72 mm OAL ; 9.93 mm Body Dia. ; Round Shank

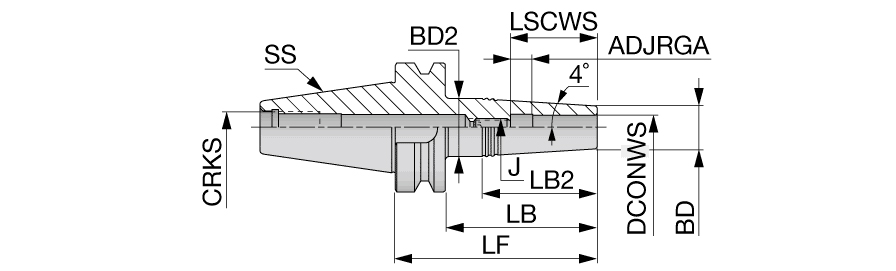

| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Shank Type | Round |
| Shank Size (SS) | 30. | Application | | Tapered shape interface | |
| Body Length (LB) | 50 mm | Thread Designation Inside (THID) | M6 |
| Body Length_2 (LB_2) | 36.3 mm | Clamping Length Workpiece Side (LSCWS) | 72 mm |
| Body Diameter (BD) | 9.93 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 15 mm | Tool Type | BT |
| Body Taper End Diameter (BTED) | 120.4 mm | Body Material | Steel |
| Overall Length (OAL) | 72 mm |
Product Features
| Family Description | Thermal shrinking holder with BT MAS-403 face contact AD tapered shank, for carbide shanks. | Country of Origin | ISRAEL |
| Remarks | Please use an induction heating unit for SRKIN holder. Applicable for 10 MPa coolant. |
Shipping Info
Package Weight
0.000
