C5ASHA20

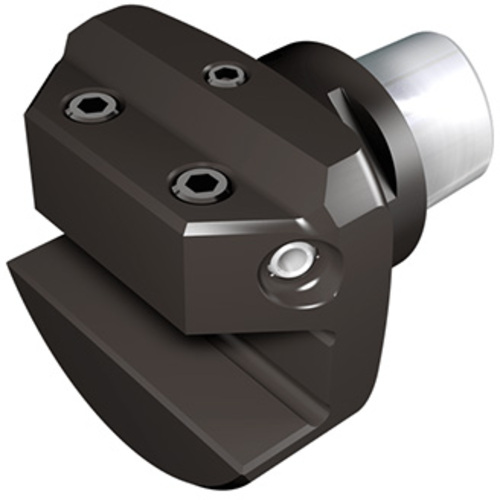

Adapter; 50 mm Shank Dia. ; C5 Shank Size ; 90 mm Body Dia.

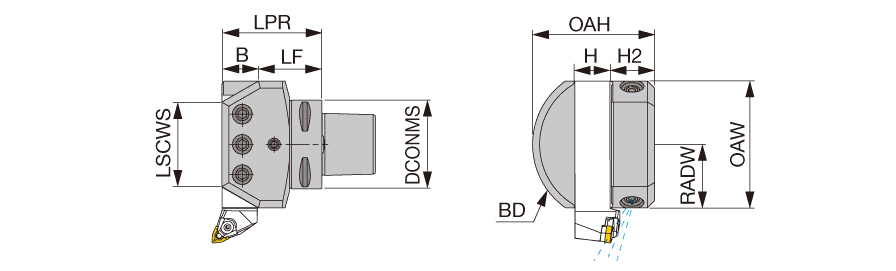

| Connection Diameter Machine Side (DCONMS) | 50 mm | Shank Size (SS) | C5 |
| Clamping Length Workpiece Side (LSCWS) | 46 mm | Application | | Face contact interface | |
| Shank Width (B) | 20 mm | Cutting Direction (HAND) | Neutral |
| Shank Height (H) | 20 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 90 mm | Measurement Type | Metric |
| Functional Length (LF) | 38 mm | Body Material | Steel |
Product Features
| Family Description | TungCap Adapter for Square Shank Toolholders | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
3.501
