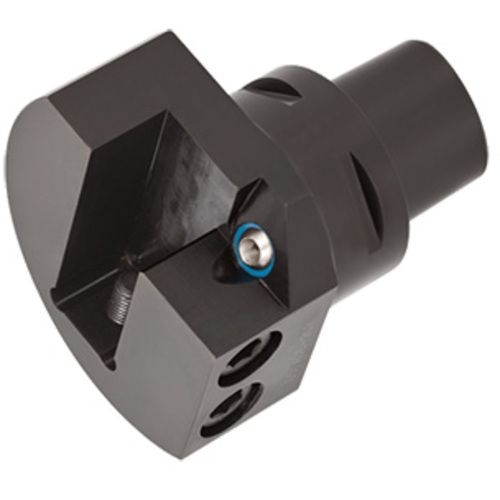

C4ADE-20L
Adapter; 40 mm Shank Dia. ; C4 Shank Size

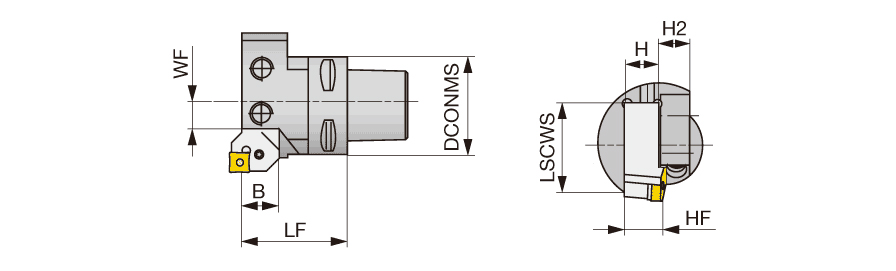

| Connection Diameter Machine Side (DCONMS) | 40 mm | Shank Size (SS) | C4 |
| Clamping Length Workpiece Side (LSCWS) | 57 mm | Application | | Face contact interface | |
| Shank Width (B) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 20 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Functional Length (LF) | 49.2 mm | Measurement Type | Metric |
| Functional Width (WF) | 8 mm | Body Material | Steel |
Product Features
| Family Description | TungCap Adapter for Square Shank toolholder | Country of Origin | ISRAEL |
| Remarks | Regular shank should be shortened. Applicable for 7 MPa coolant |
Shipping Info
Package Weight
2.154
