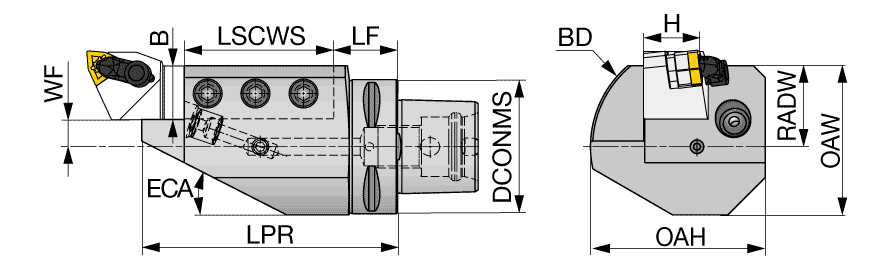

| Connection Diameter Machine Side (DCONMS) | 63 mm | Shank Size (SS) | C6 |
| Clamping Length Workpiece Side (LSCWS) | 82 mm | Application | | Face contact interface | |
| Shank Width (B) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Body Diameter (BD) | 90 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Functional Length (LF) | 38 mm | Measurement Type | Metric |
| Functional Width (WF) | 4.5 mm | Body Material | Steel |
Product Features

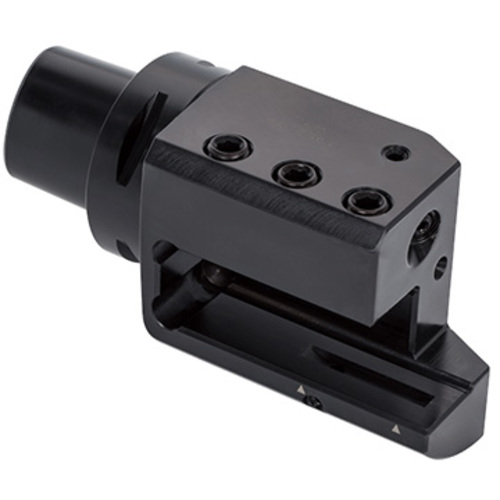

| Family Description | TungCap Axially oriented PSC adapters for square shank toolholders with hose-free direct coolant supply | Country of Origin | ITALY |
| Remarks | Applicable for 7 MPa coolant |
