C5ABB-25-60

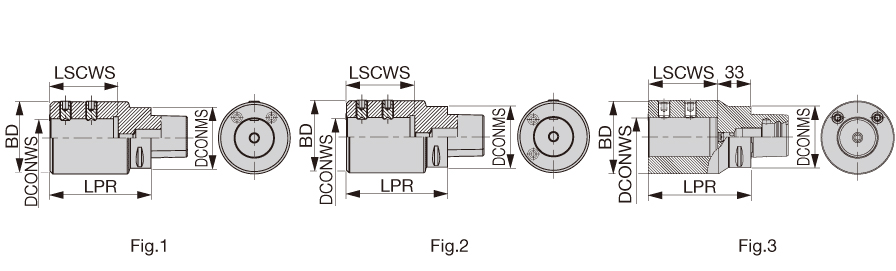

| Connection Diameter Machine Side (DCONMS) | 50 mm | Application | | Face contact interface | |
| Protruding Length (LPR) | 100 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Clamping Length Workpiece Side (LSCWS) | 60 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Body Material | Steel |
| Body Diameter (BD) | 63 mm |
Product Features

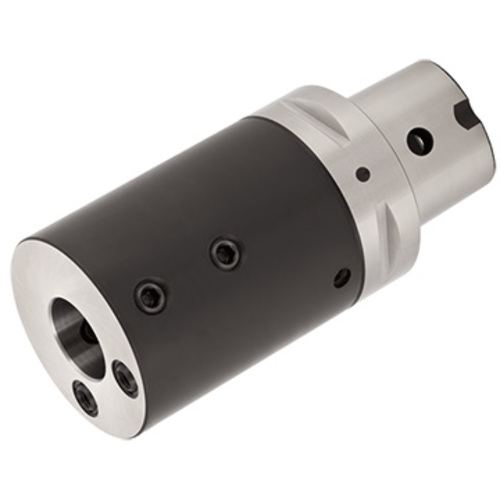

| Family Description | TungCap adapter for boring bars with sleeves | Country of Origin | ISRAEL |

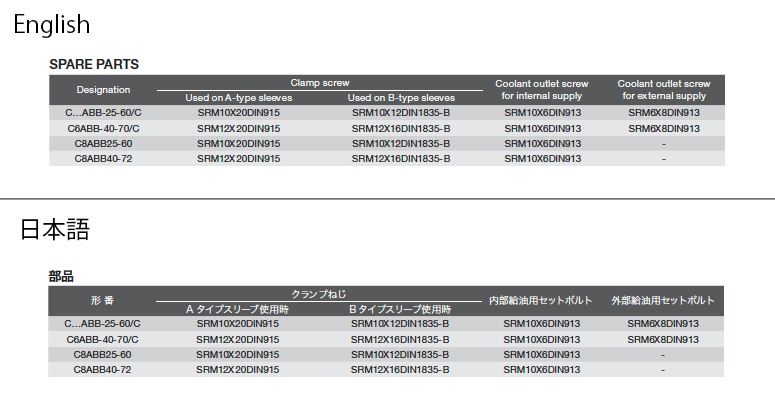

| Remarks | Applicable for 7 MPa coolant. For spare parts, click on "More Info". |
Shipping Info
Package Weight
4.674
