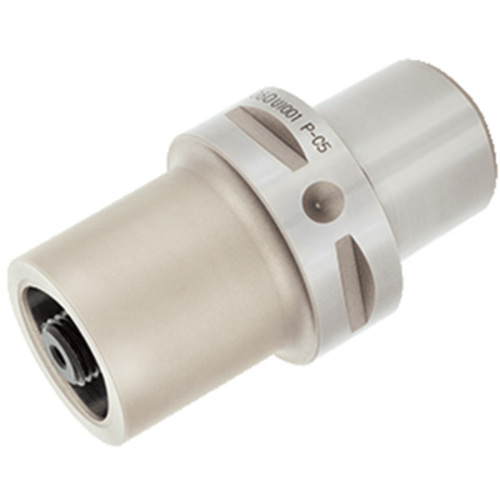

C5-C4RE-080

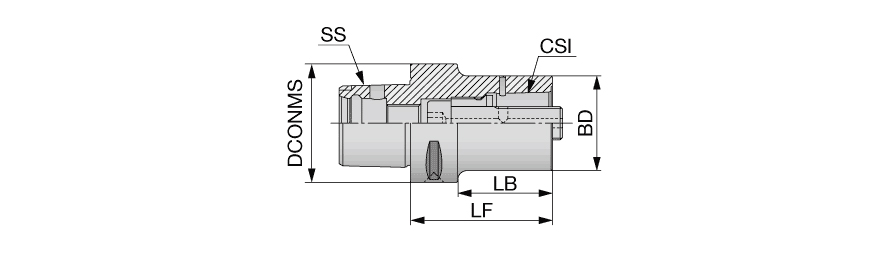

| Shank Size (SS) | 50. | Tool Type | ISO 26623 (CAMFIX, CAPTO) |
| Body Length (LB) | 60 mm | Nose Diameter | 110 mm |
| Body Diameter (BD) | 40 mm | Connection Size (CSI) | C4 |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Overall Length (OAL) | 80 mm |
| Application | | Face contact interface | | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Body Material | Steel |
Product Features
| Family Description | TungCap Reduction adapters | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping Applicable for 7 MPa coolant |
Shipping Info
Package Weight
2.103
