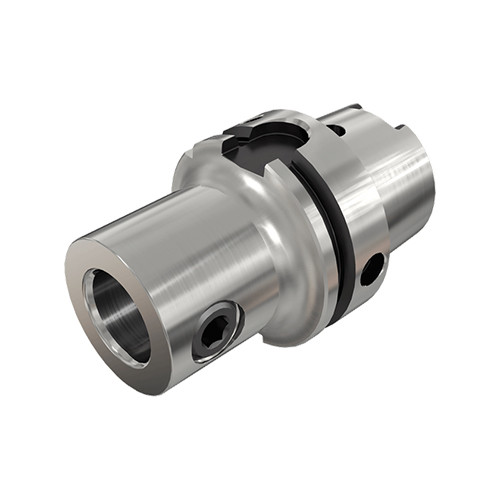

HSKA100CF4-S

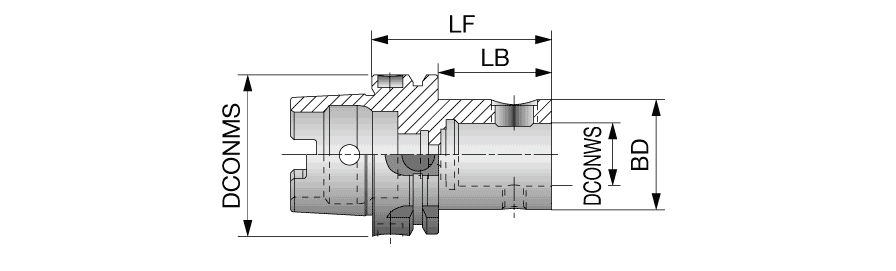

| Shank Size (SS) | 100. | Tool Type | HSK |
| Body Length (LB) | 47 mm | Nose Diameter | 126 mm |
| Body Diameter (BD) | 44.5 mm | Overall Length (OAL) | 76 mm |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Measurement Type | Metric |
| Application | | Face contact interface | | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm |
Product Features
| Family Description | TungFit quick change style modular tooling system with HSK-A shank | Country of Origin | ISRAEL |
| Remarks | Tightening torque: 58.8 Nm |
Shipping Info
Package Weight
0.000
