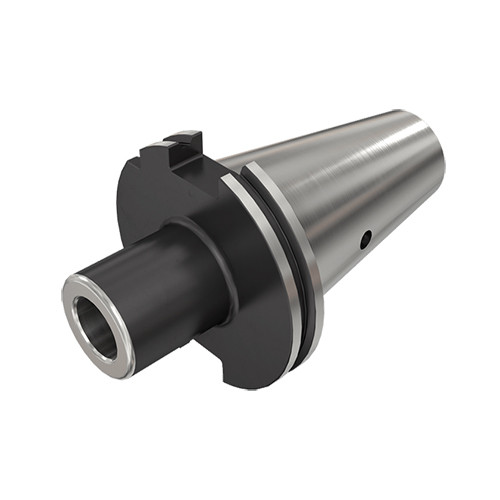

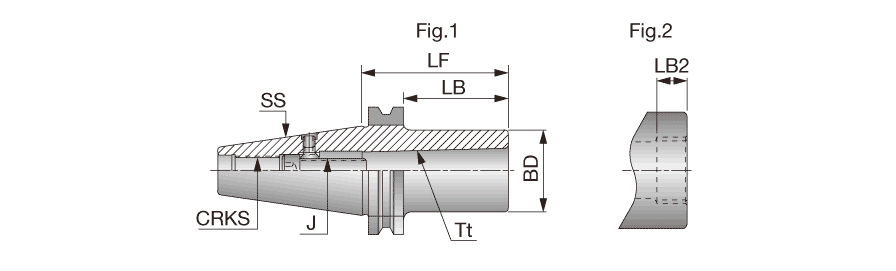

DIN6987140MT4DRW
| Shank Size (SS) | 40. | Body Length_2 (LB_2) | 15 mm |
| Body Length (LB) | 75.9 mm | Tool Type | DIN 69871 |
| Body Diameter (BD) | 63 mm | Nose Diameter | 163.4 mm |
| Application | | Tapered shape interface | | Overall Length (OAL) | 95 mm |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M16 | Measurement Type | Metric |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Material | Steel |
Product Features
| Family Description | Morse taper holder with draw bar for DIN69871 | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.000
