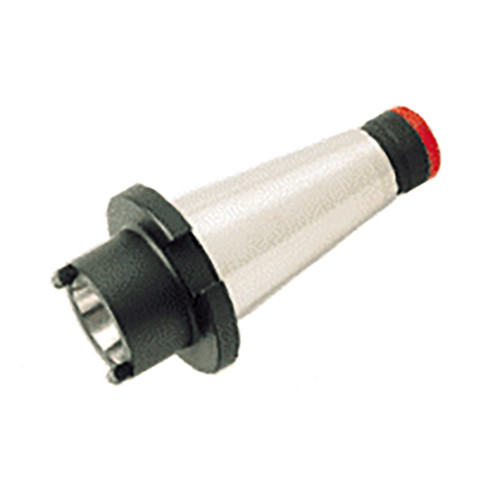

DIN208050AD40

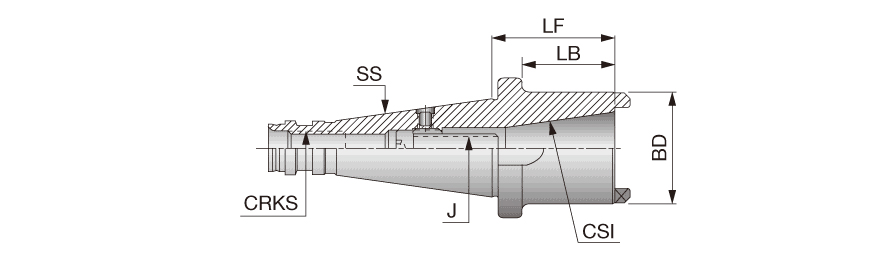

| Shank Size (SS) | 50. | Tool Type | Interchangeable Milling Connectors |
| Body Length (LB) | 34.8 mm | Connection Size (CSI) | DIN2080 |
| Body Diameter (BD) | 63 mm | Overall Length (OAL) | 50 mm |
| Application | | Tapered shape interface | | Measurement Type | Metric |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M16 | Body Material | Steel |
| Connection Retention Knob Thread Size (CRKS) | M24 |
Product Features
| Family Description | Conversion adapter for DIN2080 system | Country of Origin | ITALY |
Shipping Info
Package Weight
0.000
