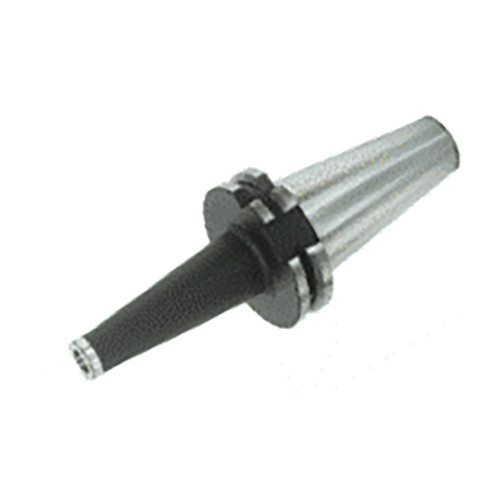

DIN6987150ODP16X78

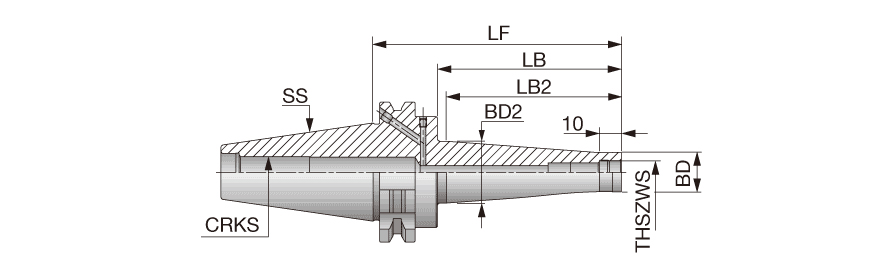

| Shank Size (SS) | 50. | Tool Type | DIN 69871 |
| Body Length (LB) | 58.9 mm | Nose Diameter | 179.75 mm |
| Body Diameter (BD) | 29 mm | Overall Length (OAL) | 78 mm |
| Application | | Tapered shape interface | | Measurement Type | Metric |
| Connection Retention Knob Thread Size (CRKS) | M24 | Body Material | Steel |
| Body Length_2 (LB_2) | 50 mm |
Product Features
| Family Description | TungFlex modular tooling system with DIN69871 shank | Country of Origin | ITALY |
Shipping Info
Package Weight
6.532
