SC25SHYDRO6

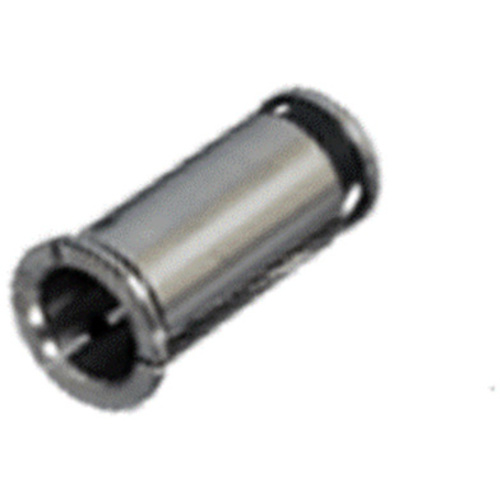

Milling Chuck Sleeve ; 6 mm Hole Dia. ; 25 mm Shank Dia. ; 60 mm OAL ; 30 mm Body Dia. ; Round Shank

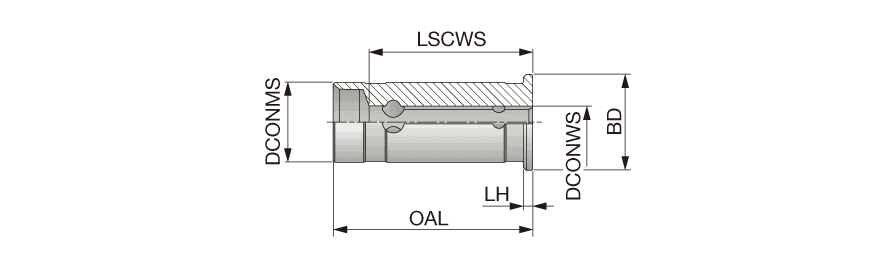

| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Application | | Accessories | |
| Body Diameter (BD) | 30 mm | Tool Type | Accessories |
| Overall Length (OAL) | 60 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 37 mm | Body Material | Steel |
| Head Length (LH) | 4 mm |
Product Features
| Family Description | Sealed reduction sleeves for hydraulic chucks | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.414
