SC 1-1/4 SEAL 1

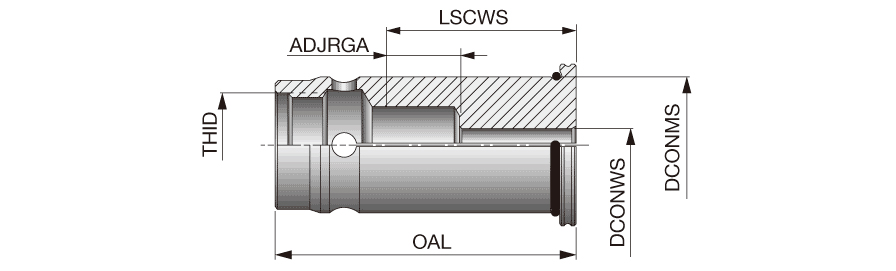

Milling Chuck Sleeve ; 1″ Hole Dia. ; 1-1/4″ Shank Dia. ; 2.835″ OAL ; Round Shank
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | | Accessories | |
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Tool Type | Sleeves (SC, TSL) |
| Overall Length (OAL) | 2.835″ | Measurement Type | Inch |
| Clamping Length Workpiece Side (LSCWS) | 2.48″ | Body Material | Steel |
| Shank Type | Round |
Product Features
| Family Description | Sealed Collets for TungMax Power Chucks | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
0.000
