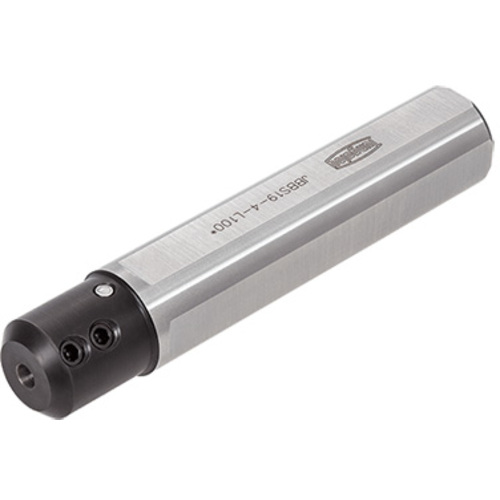

JBBS19-4-L100C
Milling Chuck Sleeve ; 4 mm Hole Dia. ; 19.05 mm Shank Dia. ; 100 mm OAL ; 17.5 mm Body Dia.

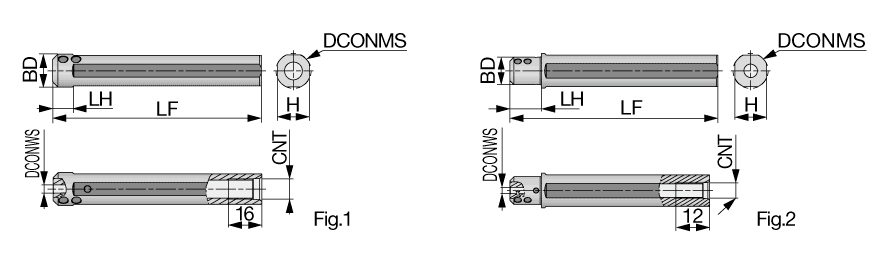

| Connection Diameter Machine Side (DCONMS) | 19.05 mm | Application | | Accessories | Straight shape | |
| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Tool Type | Square Shanks |
| Body Diameter (BD) | 17.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 100 mm | Body Material | Steel |
| Head Length (LH) | 20 mm |
Product Features
| Family Description | Sleeve for internal coolant supply | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.397
