D5490300

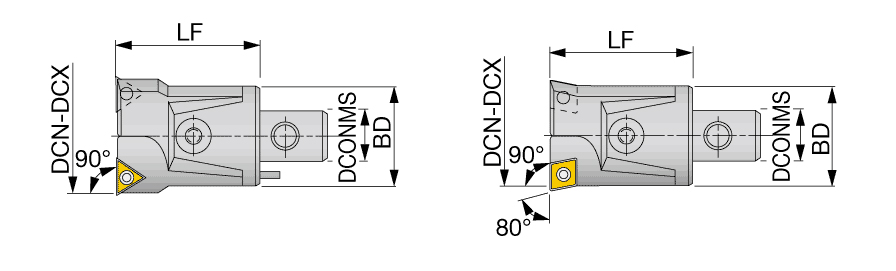

| Application | | PINZBOHR tools | | Connection Diameter Machine Side (DCONMS) | 1.102″ |
| Cutting Diameter Minimum (DCN) | 2.4803″ | Master Insert Identification (MIID) | 3.2283″ |
| Cutting Diameter Maximum (DCX) | 3.2283″ | Measurement Type | Inch |
| Functional Length (LF) | 2.598″ | Connection Diameter Workpiece Side (DCONWS) | 1.102″ |
| Body Diameter (BD) | 2.126″ | Body Material | Steel |
Product Features

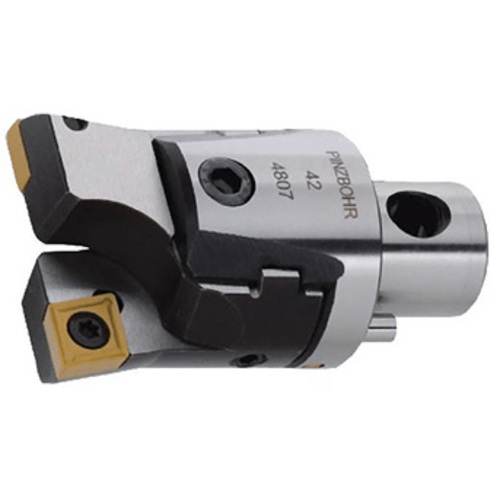

| Family Description | Roughing-Head with 90deg approach for dia 0.945 - 3.228 inch | Country of Origin | SPAIN |
| Remarks | PINZBOHR Boring System is a product of MYFHE,S.A. |
Shipping Info
Package Weight
2.355
