D2275400

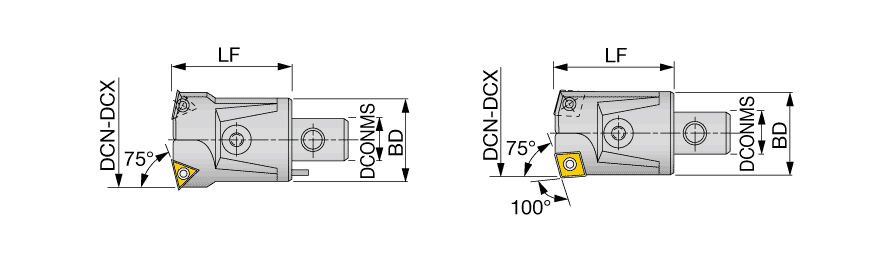

| Application | | PINZBOHR tools | | Connection Diameter Machine Side (DCONMS) | 0.472″ |
| Cutting Diameter Minimum (DCN) | 0.9449″ | Master Insert Identification (MIID) | 1.181″ |
| Cutting Diameter Maximum (DCX) | 1.1811″ | Measurement Type | Inch |
| Functional Length (LF) | 1.339″ | Connection Diameter Workpiece Side (DCONWS) | 0.472″ |
| Body Diameter (BD) | 0.866″ | Body Material | Steel |
Product Features

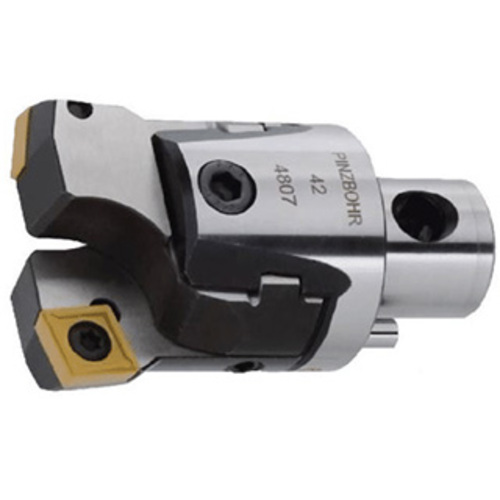

| Family Description | Roughing-Head with 75deg approach for dia 0.945 - 3.228 inch | Country of Origin | SPAIN |
| Remarks | 100 deg corner of CC**0602, CC**09T3 and CN**1204 are used. PINZBOHR Boring System is a product of MYFHE,S.A. |
Shipping Info
Package Weight
0.227
