A3290409

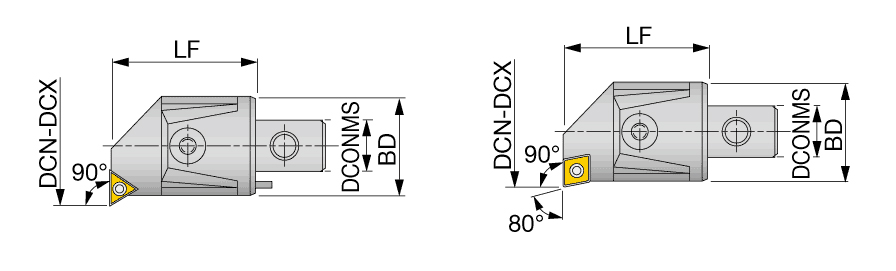

| Application | | PINZBOHR tools | | Connection Diameter Machine Side (DCONMS) | 0.787″ |
| Cutting Diameter Minimum (DCN) | 1.5354″ | Master Insert Identification (MIID) | 1.9685″ |
| Cutting Diameter Maximum (DCX) | 1.9685″ | Measurement Type | Inch |
| Functional Length (LF) | 1.772″ | Connection Diameter Workpiece Side (DCONWS) | 0.787″ |
| Body Diameter (BD) | 1.26″ | Body Material | Steel |
Product Features

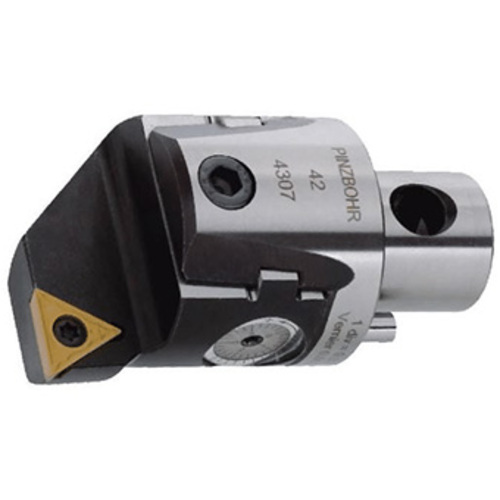

| Family Description | Finishing-Head with 90deg approach for dia 0.945 - 3.228 inch | Country of Origin | SPAIN |
| Remarks | PINZBOHR Boring System is a product of MYFHE,S.A. |
Shipping Info
Package Weight
0.575
