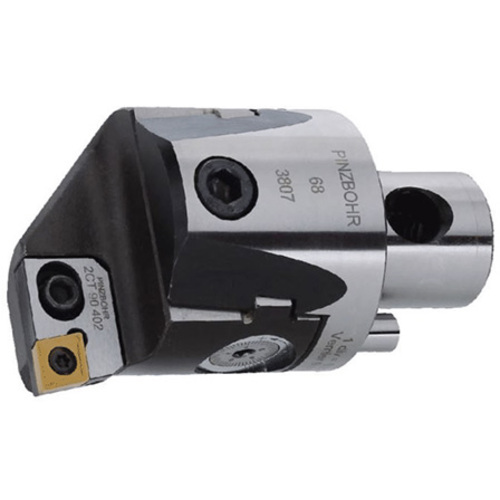

A200903CT402N

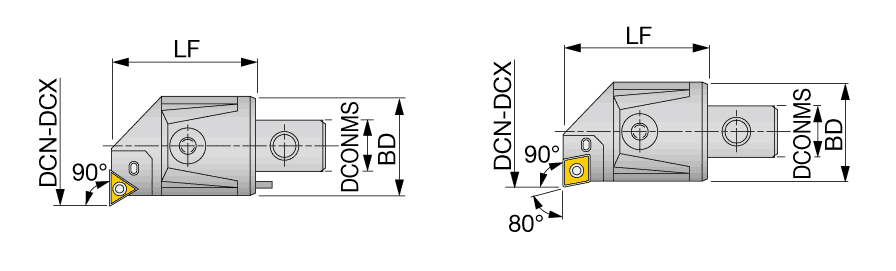

| Application | | PINZBOHR tools | | Connection Diameter Machine Side (DCONMS) | 2.362″ |
| Cutting Diameter Minimum (DCN) | 6.299″ | Overall Width (OAW) | 1.535″ |
| Cutting Diameter Maximum (DCX) | 8.661″ | Master Insert Identification (MIID) | 8.661″ |
| Functional Length (LF) | 3.937″ | Measurement Type | Inch |
| Body Diameter (BD) | 5.709″ | Connection Diameter Workpiece Side (DCONWS) | 2.362″ |
| Shank Size (SS) | 1.535″ | Body Material | Steel |
Product Features
| Family Description | Finishing-Head with 90deg approach for dia 3.150 - 8.661 inch with cartridge | Country of Origin | SPAIN |
| Remarks | PINZBOHR Boring System is a product of MYFHE,S.A. |
Shipping Info
Package Weight
18.387
