206.064.025.045

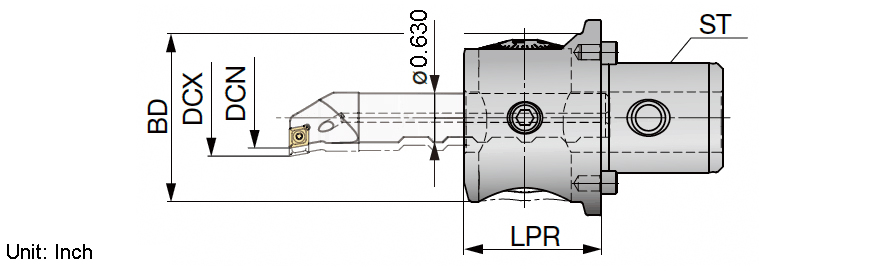

| Application | | SwissBore tools | | Body Diameter (BD) | 2.165″ |
| Cutting Diameter Minimum (DCN) | 0.3838″ | Connection Diameter Machine Side (DCONMS) | 1.417″ |
| Cutting Diameter Maximum (DCX) | 3.4685″ | Measurement Type | Inch |
| Functional Length (LF) | 1.772″ | Body Material | Steel |
Product Features

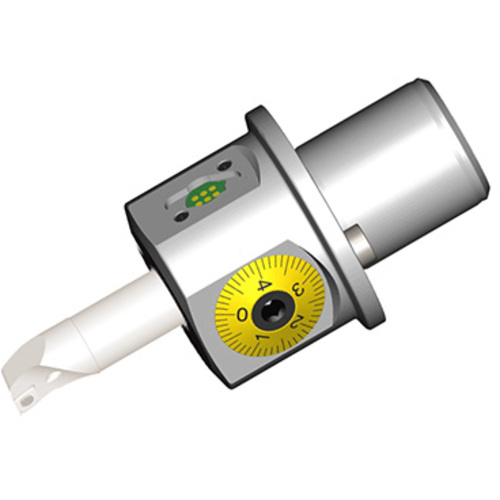

| Family Description | Digital Fine boring heads for dia 0.348 - 3.469 inch | Country of Origin | SWITZERLAND |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". Boring bars should be ordered individualy. Radius adjustment range: 2.7 mm Applicable for 3 MPa pressure coolant. |
Shipping Info
Package Weight
0.000
Related Documentation

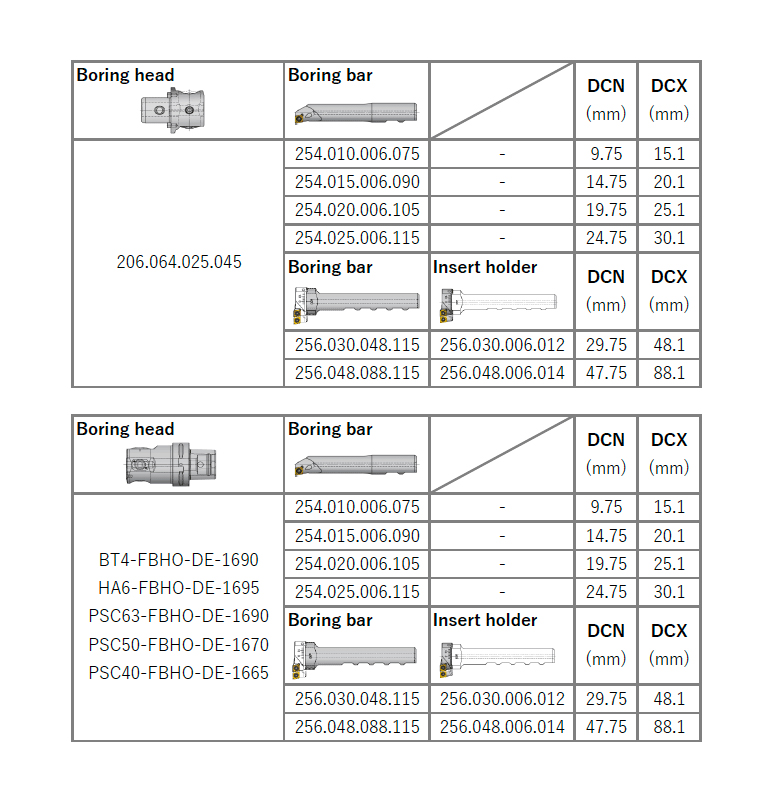

DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
