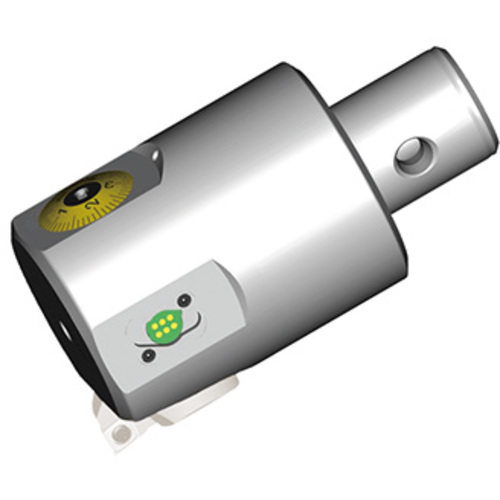

305.064.087.100

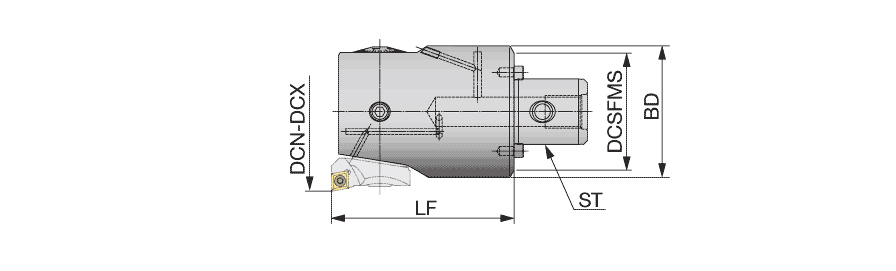

| Application | | SwissBore tools | | Body Diameter (BD) | 2.835″ |
| Cutting Diameter Minimum (DCN) | 3.4213″ | Connection Diameter Machine Side (DCONMS) | 1.417″ |
| Cutting Diameter Maximum (DCX) | 5.2795″ | Measurement Type | Inch |
| Functional Length (LF) | 3.937″ | Body Material | Steel |
Product Features
| Family Description | Digital Fine boring heads for dia 0.941 - 7.996 inch | Country of Origin | SWITZERLAND |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". Insert holders should be ordered individualy. Applicable for 7 MPa pressure coolant. |
Shipping Info
Package Weight
0.000
Related Documentation
DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
