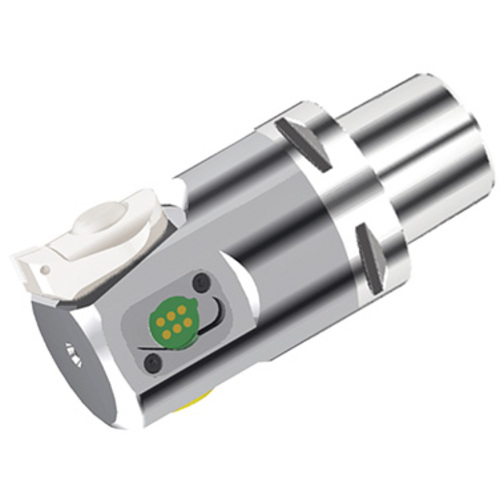

PSC40-FBHS-DE-40

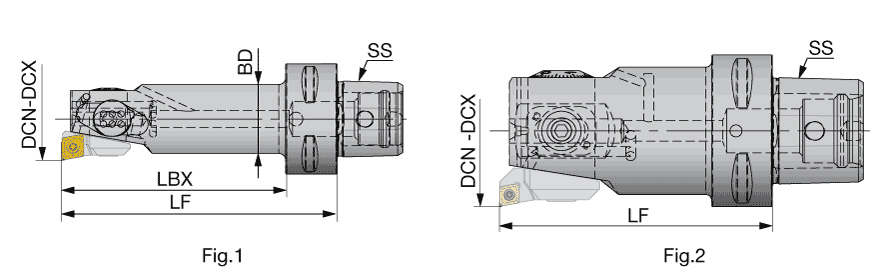

| Application | | Face contact interface | SwissBore tools | | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Cutting Diameter Minimum (DCN) | 39.9 mm | Master Insert Identification (MIID) | 59.1 mm |
| Cutting Diameter Maximum (DCX) | 59.1 mm | Measurement Type | Metric |
| Functional Length (LF) | 90 mm | Body Material | Steel |
| Body Diameter (BD) | 32 mm |
Product Features
| Family Description | Digital Fine boring heads for dia 23.9 - 153.1 mm | Country of Origin | SWITZERLAND |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". Insert holders should be ordered individualy. Applicable for 7 MPa pressure coolant. |
Shipping Info
Package Weight
1.455
Related Documentation

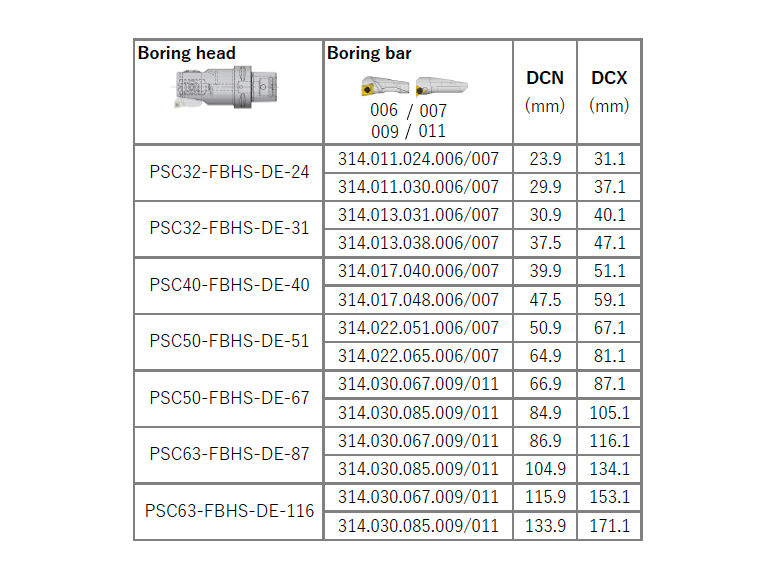

DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
