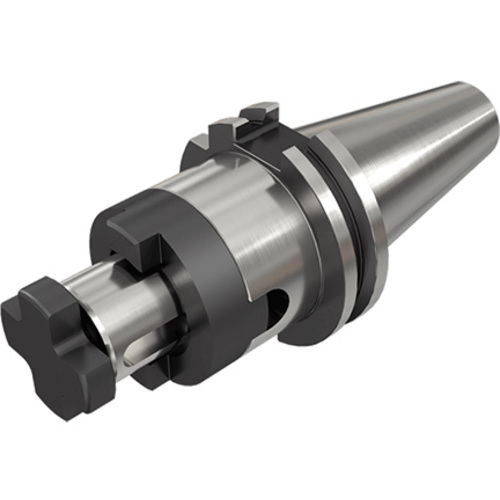

BT50 SEMC 50X150
Shell Mill Holder; 50 mm Shank Dia. ; 50 mm Hole Dia. ; 90 mm Body Dia. ; 150 mm Body Length ; 50 Shank Size

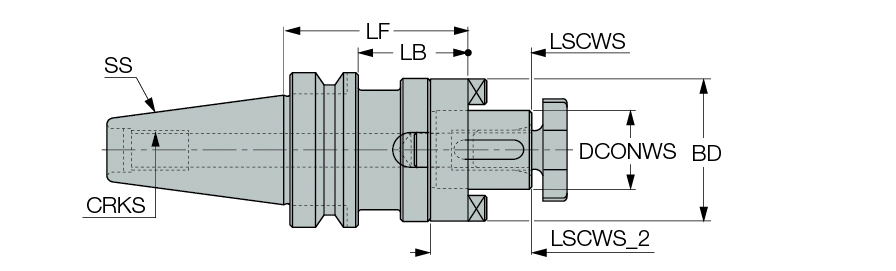

| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 30 mm |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Tool Type | BT |
| Shank Size (SS) | 50 | Measurement Type | Metric |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Body Length (LB) | 150 mm | Connection Code Machine Side (CCMS) | BT |
| Body Diameter (BD) | 90 mm |
Product Features
| Family Description | COMBI shell mill holders with BT MAS-403 AD tapered shanks . | Country of Origin | Turkey |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) |
Shipping Info
Package Weight
21.208
