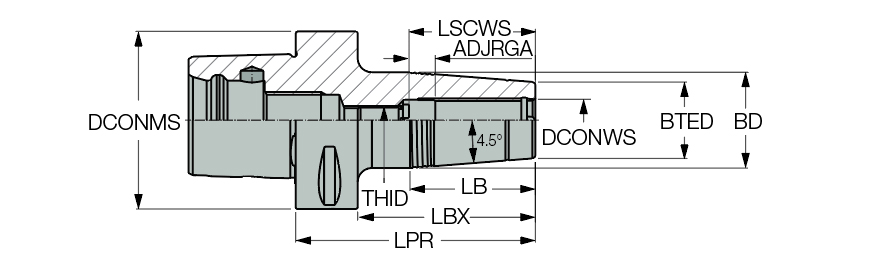

| Connection Diameter Machine Side (DCONMS) | 63 mm | Protruding Length (LPR) | 95 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Body Length Maximum (LBX) | 73 mm |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 59 mm |
| Body Length (LB) | 57.2 mm | Measurement Type | Metric |
| Body Diameter (BD) | 53 mm | Body Material | Steel |
| Body Taper End Diameter (BTED) | 44 mm |
Product Features
| Family Description | Thermal shrink chucks with CAMFIX (ISO 26623-1) tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET channels - do not remove |
Shipping Info
Package Weight
3.307
