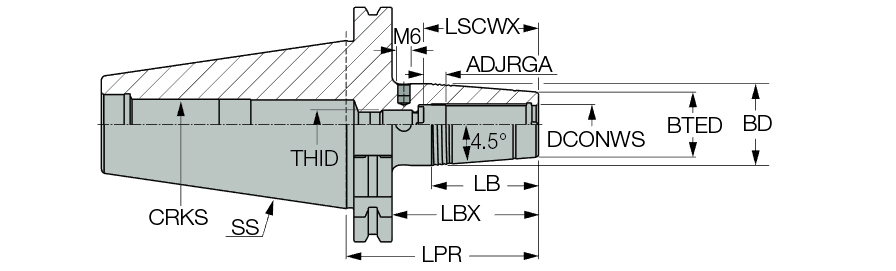

| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Body Length Maximum (LBX) | 60.9 mm |
| Shank Size (SS) | 40 | Clamping Length Workpiece Side (LSCWS) | 34 mm |
| Body Length (LB) | 38 mm | Measurement Type | Metric |
| Body Diameter (BD) | 27 mm | Tool Type | DIN 69871 |
| Body Taper End Diameter (BTED) | 21 mm | Body Material | Steel |
| Protruding Length (LPR) | 80 mm |
Product Features
| Family Description | Thermal shrink chucks with DIN69871 Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance . | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET channels - do not remove |
Shipping Info
Package Weight
2.379
