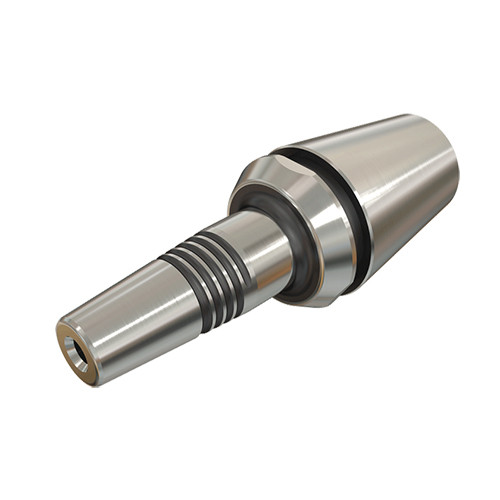

ER16 SRK 6X35
Shrink Fit Holder ; 6 mm Hole Dia. ; 16 mm Shank Dia. ; 62.5 mm OAL ; 12 mm Body Dia.

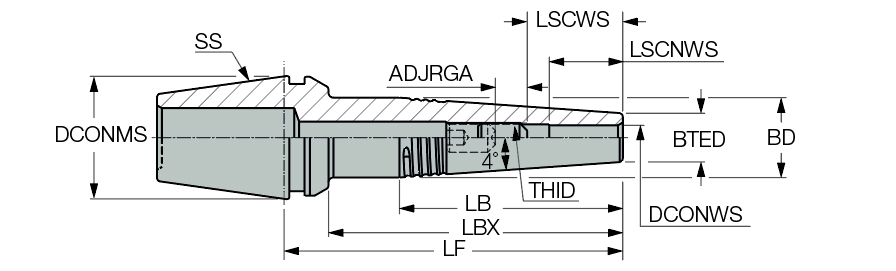

| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Length Maximum (LBX) | 36 mm |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Overall Length (OAL) | 62.5 mm |
| Shank Size (SS) | ER16 | Clamping Length Workpiece Side (LSCWS) | 22 mm |
| Body Length (LB) | 7.2 mm | Measurement Type | Metric |
| Body Diameter (BD) | 12 mm | Tool Type | Spring Collets |
| Body Taper End Diameter (BTED) | 11 mm | Body Material | Steel |
Product Features
| Family Description | Thermal shrinking chucks with integral ER collet, for solid carbide tools only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
0.130
