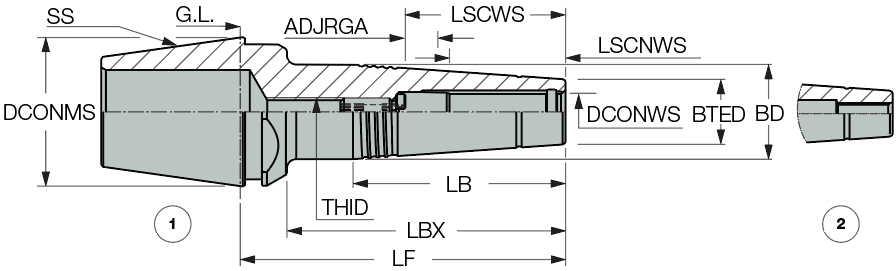

| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Length Maximum (LBX) | 35 mm |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Clamping Length Workpiece Side (LSCWS) | 39.3 mm |
| Shank Size (SS) | ER32 | Measurement Type | Metric |
| Body Diameter (BD) | 20.9 mm | Body Material | Steel |
| Body Taper End Diameter (BTED) | 16 mm |
Product Features

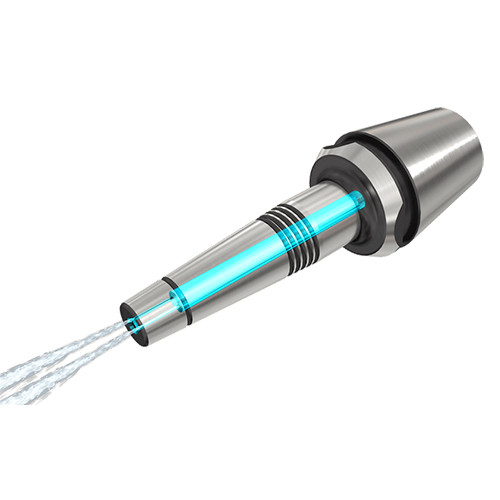

| Family Description | Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
0.489
