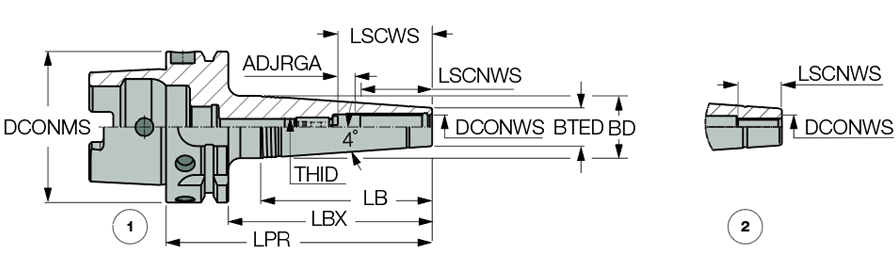

| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Length Maximum (LBX) | 50 mm |
| Connection Diameter Workpiece Side (DCONWS) | 3 mm | Measurement Type | Metric |
| Body Diameter (BD) | 17 mm | Tool Type | HSK |
| Body Taper End Diameter (BTED) | 10 mm | Body Material | Steel |
| Protruding Length (LPR) | 76 mm | Connection Code Machine Side (CCMS) | HSK |

Product Features

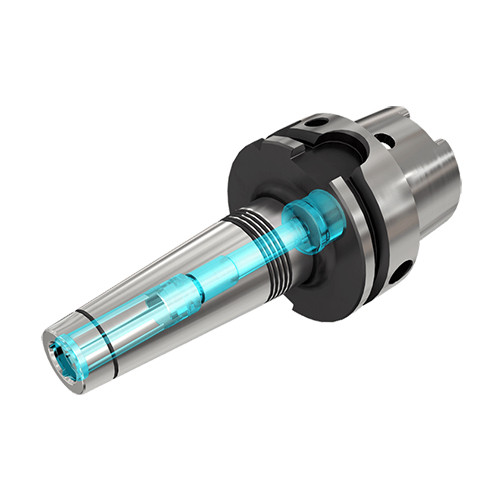

| Family Description | Thermal Shrink Chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide tools with h6 tolerance. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For solid carbide tools Preset screw CX allows supply of coolant via JET channels - not to be removed! For shank dimensions click on More Info |
Shipping Info
Package Weight
1.698
