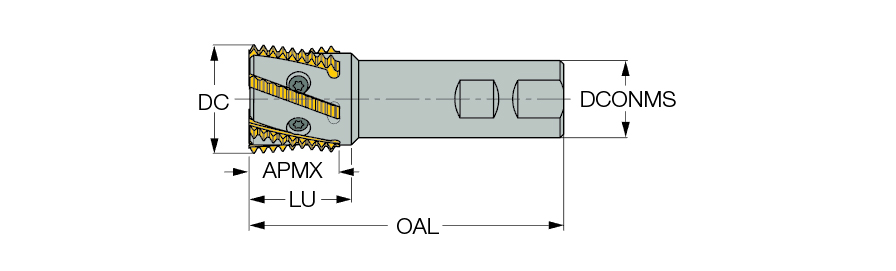

| Cutting Diameter (DC) | 32 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 32 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 130 mm | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Usable Length (LU) | 60 mm | Thread Type (TTP_DF2) | INT |
| Shank Type | Weldon |
Product Features
| Family Description | Endmills with coolant holes for helical threading inserts | Country of Origin | Israel |
| Remarks | ISCAR can provide special contour inserts on request. For Adaptation Click on More Info |
Shipping Info
Package Weight
1.473
