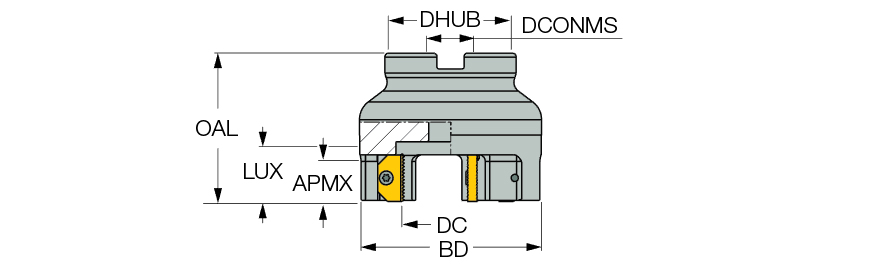

| Cutting Diameter (DC) | 45 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 21 mm | Application | | External Thread Milling | |
| Overall Length (OAL) | 67 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Diameter (BD) | 83.2 mm |
| Usable Length (LU) | 27 mm |
Product Features

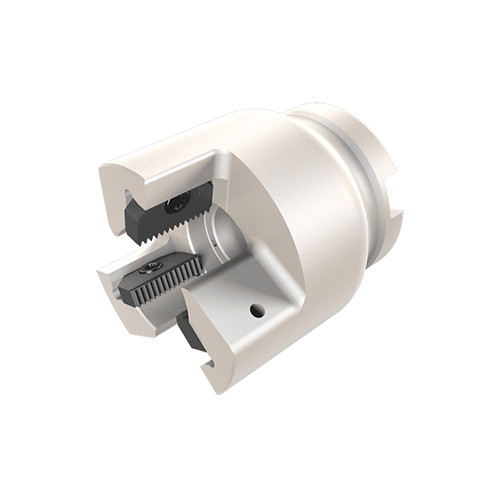

| Family Description | External multi-tooth threading shell mills. | Country of Origin | Israel |
Shipping Info
Package Weight
3.706
