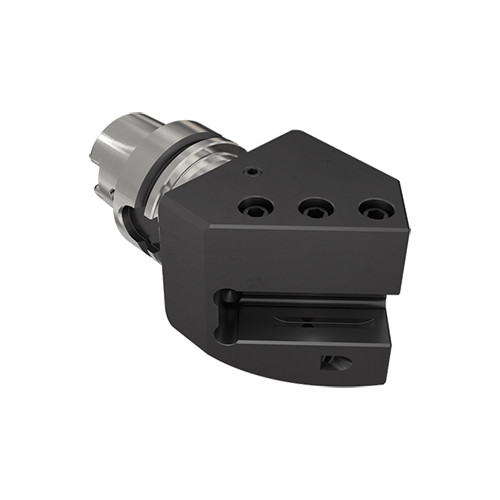

HSK A63WH ASHR25-45 HPMC
Adapter; 63 mm Shank Dia. ; 100 mm Body Dia. ; 30 mm Body Length

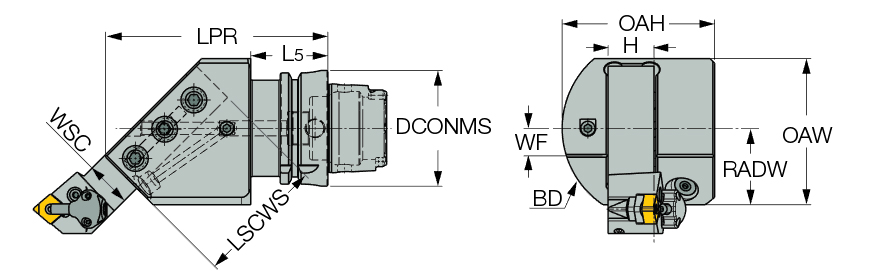

| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 70 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Overall Height (OAH) | 83 mm |
| Body Diameter (BD) | 100 mm | Connection Code Machine Side (CCMS) | HSK |
| Body Length (LB) | 30 mm | Overall Width (OAW) | 79.6 mm |
| Tool Type | HSK -T (ISO 12164-3) |
Product Features
| Family Description | Holders with HSK shanks, carrying square shank tools for 45° mounting on turn-mill machines with high pressure multi connection | Country of Origin | Taiwan |
Shipping Info
Package Weight
6.923
