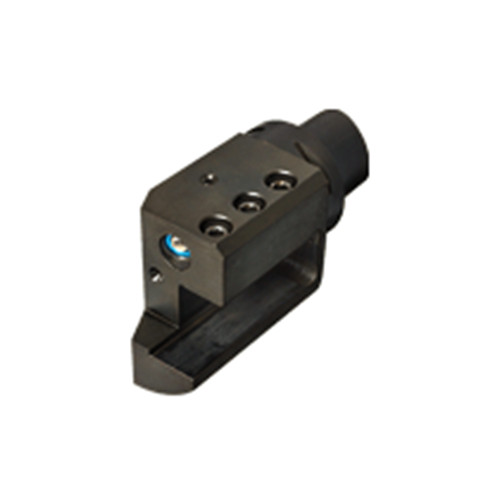

C6 ASHR 25 1-J
Adapter; 63 mm Shank Dia. ; 63 Shank Size ; 120 mm LPR ; 90 mm Body Dia. ; 38 mm Body Length ; 158 mm OAL

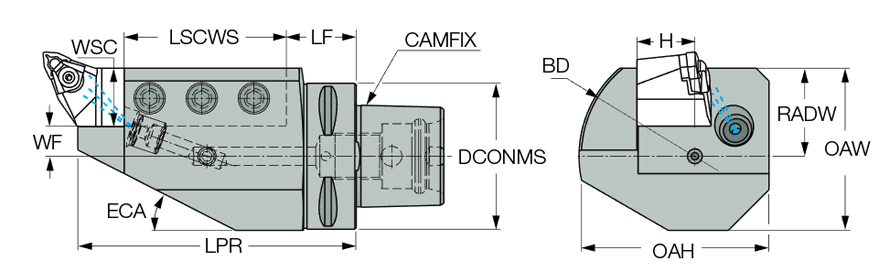

| Protruding Length (LPR) | 120 mm | Shank Size (SS) | 63 |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Clamping Length Workpiece Side (LSCWS) | 82 mm | Measurement Type | Metric |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Overall Height (OAH) | 86.5 mm |
| Body Diameter (BD) | 90 mm | Overall Length (OAL) | 158 mm |
| Body Length (LB) | 38 mm | Overall Width (OAW) | 61 mm |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools. | Country of Origin | Italy |
Shipping Info
Package Weight
6.940
